We're professional asynchronous three phase motor manufacturers and suppliers in China, to buy or wholesale asynchronous motor 3 phase from our factory. For quotation or if you have any questions, contact us now for customized 1 hp 3 phase induction motor and price.

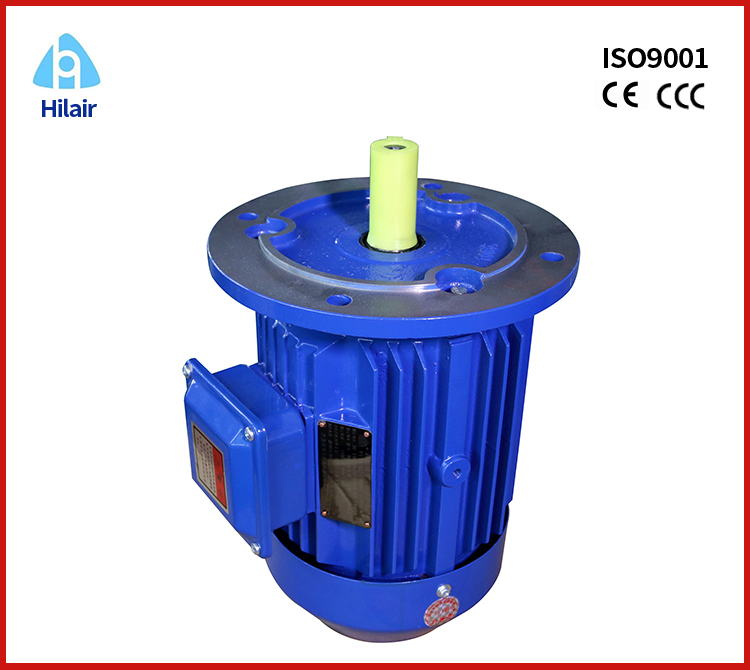

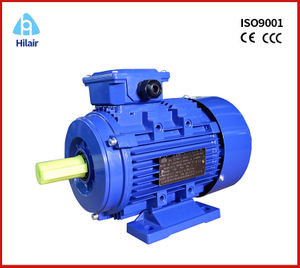

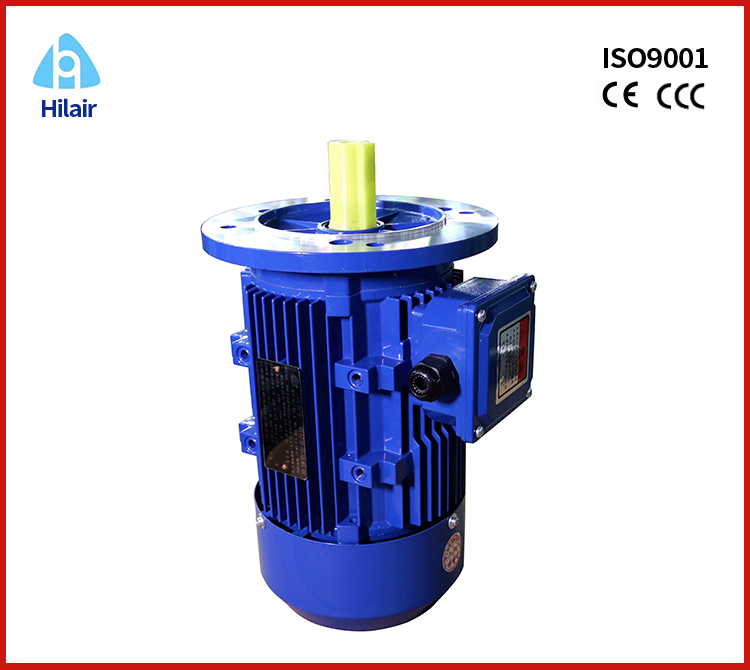

Three-phase induction motors, developed with new techniques, are renewal and upgrading products of Y2 series motors are defined as totally enclosed, fan cooled, squirrel cage type and noted for their novel design, beautiful modelling, compact structure, low noise, high efficiency, large torque, excellent starting performance, easy serving, etc. These motors consist of a stator and a rotor and between which no electrical connection exists. These stator and rotors are constructed with the use of high-magnetic core materials in order to reduce hysteresis and eddy current losses.The motors are adopted with F class insulation and designed with assessing method for insulation system according to international practice, it enhances greatly motor's safely and reliability, therefore, these motor's have reached an international advanced level.
| Motor Type | Power | Speed | InA | Efficiency | Power factor | TLR/ Trated | Tmax/Trated | Ilr/I rated | LwdB (A) | Weight | |
| KW | HP | R/ min | 380V | 100% | Cos | KG | |||||
| YE3-80M1-2 | 0.75 | 1.0 | 2830 | 1.8 | 77.4 | 0.83 | 2.3 | 2.3 | 6.8 | 62 | 16 |
| YE3-80M2-2 | 1.1 | 1.5 | 2830 | 2.5 | 79.6 | 0.83 | 2.3 | 2.3 | 7.1 | 62 | 17.5 |
| YE3-90S-2 | 1.5 | 2.0 | 2840 | 3.4 | 81.3 | 0.84 | 2.3 | 2.3 | 7.3 | 67 | 23.5 |
| YE3-90L-2 | 2.2 | 3.0 | 2840 | 4.7 | 83.2 | 0.85 | 2.3 | 2.3 | 7.6 | 67 | 28.5 |
| YE3-100L-2 | 3.0 | 4.0 | 2880 | 6.2 | 84.6 | 0.87 | 2.2 | 2.3 | 7.8 | 74 | 38 |
| YE3-112M-2 | 4.0 | 5.5 | 2880 | 8 | 85.8 | 0.88 | 2.2 | 2.3 | 8.1 | 77 | 49 |
| YE3-132S1-2 | 5.5 | 7.5 | 2900 | 10.9 | 87 | 0.88 | 2.2 | 2.3 | 8.2 | 79 | 63 |
| YE3-132S2-2 | 7.5 | 10 | 2900 | 14.5 | 88.1 | 0.89 | 2.2 | 2.3 | 7.8 | 79 | 70 |
| YE3-160M1-2 | 11 | 15 | 2900 | 21 | 89.4 | 0.89 | 2.2 | 2.3 | 7.9 | 81 | 121 |
| YE3-160M2-2 | 15 | 20 | 2930 | 28 | 90.3 | 0.89 | 2.2 | 2.3 | 7.9 | 81 | 132 |
| YE3-160L-2 | 18.5 | 25 | 2930 | 34 | 90.9 | 0.89 | 2.2 | 2.3 | 8.0 | 81 | 138 |
| YE3-180M-2 | 22 | 30 | 2940 | 41 | 91.3 | 0.89 | 2.2 | 2.3 | 8.1 | 83 | 191 |
| YE3-200L1-2 | 30 | 40 | 2950 | 55 | 92 | 0.89 | 2.0 | 2.3 | 7.5 | 84 | 240 |
| YE3-200L2-2 | 37 | 50 | 2950 | 67 | 92.5 | 0.89 | 2.0 | 2.3 | 7.5 | 84 | 257 |
| YE3-225M-2 | 45 | 60 | 2970 | 81 | 92.9 | 0.89 | 2.2 | 2.3 | 7.6 | 86 | 310 |
| YE3-250M-2 | 55 | 75 | 2970 | 100 | 93.2 | 0.89 | 2.2 | 2.3 | 7.6 | 89 | 386 |
| YE3-280S-2 | 75 | 100 | 2970 | 134 | 93.8 | 0.89 | 1.8 | 2.3 | 6.9 | 91 | 505 |
| YE3-280M-2 | 90 | 125 | 2970 | 160 | 94.1 | 0.89 | 1.8 | 2.3 | 6.9 | 91 | 555 |
| YE3-315S-2 | 110 | 150 | 2980 | 195 | 94.3 | 0.90 | 1.8 | 2.2 | 7.0 | 92 | 975 |
| YE3-315M-2 | 132 | 180 | 2980 | 232 | 94.6 | 0.90 | 1.8 | 2.2 | 7.0 | 92 | 1035 |
| YE3-315L1-2 | 160 | 215 | 2980 | 280 | 94.8 | 0.91 | 1.8 | 2.2 | 7.1 | 92 | 1130 |
| YE3-315L2-2 | 200 | 270 | 2980 | 350 | 95 | 0.91 | 1.8 | 2.2 | 7.1 | 92 | 1220 |
| YE3-80M1-4 | 0.55 | 0.75 | 1390 | 1.56 | 76.5 | 0.75 | 2.3 | 2.3 | 6.3 | 56 | 17 |
| YE3-80M2-4 | 0.75 | 1.0 | 1390 | 2.0 | 79.6 | 0.75 | 2.3 | 2.3 | 6.4 | 56 | 18.5 |
| YE3-90S-4 | 1.1 | 1.5 | 1400 | 2.8 | 81 | 0.75 | 2.3 | 2.3 | 6.6 | 59 | 24 |
| YE3-90L-4 | 1.5 | 2.0 | 1400 | 3.7 | 82.8 | 0.75 | 2.3 | 2.3 | 6.7 | 59 | 29.5 |
| YE3-100L1-4 | 2.2 | 3.0 | 1430 | 5.1 | 84.3 | 0.81 | 2.3 | 2.3 | 7.3 | 64 | 39.5 |
| YE3-100L2-4 | 3.0 | 4.0 | 1430 | 6.7 | 85.5 | 0.82 | 2.3 | 2.3 | 7.5 | 64 | 43.5 |
| YE3-112M-4 | 4.0 | 5.5 | 1440 | 8.7 | 86.6 | 0.82 | 2.3 | 2.3 | 7.5 | 65 | 52 |
| YE3-132S-4 | 5.5 | 7.5 | 1440 | 11.6 | 87.7 | 0.82 | 2.0 | 2.3 | 7.5 | 71 | 66 |
| YE3-132M-4 | 7.5 | 10 | 1440 | 15.5 | 88.7 | 0.83 | 2.0 | 2.3 | 7.4 | 71 | 78 |
| YE3-160M-4 | 11 | 15 | 1460 | 22.4 | 89.8 | 0.85 | 2.0 | 2.3 | 7.5 | 73 | 122 |
| YE3-160L-4 | 15 | 20 | 1460 | 30 | 90.6 | 0.86 | 2.0 | 2.3 | 7.5 | 73 | 139 |
| YE3-180M-4 | 18.5 | 25 | 1470 | 36.5 | 91.2 | 0.86 | 2.0 | 2.3 | 7.6 | 76 | 188 |
| YE3-180L-4 | 22 | 30 | 1470 | 43 | 91.6 | 0.86 | 2.1 | 2.3 | 7.7 | 76 | 193 |
| YE3-200L-4 | 30 | 40 | 1470 | 58 | 92.3 | 0.86 | 2.1 | 2.3 | 7.1 | 76 | 256 |
| YE3-225S-4 | 37 | 50 | 1475 | 70 | 92.7 | 0.86 | 2.1 | 2.3 | 7.3 | 78 | 308 |
| YE3-225M--4 | 45 | 60 | 1475 | 85 | 93.1 | 0.86 | 2.2 | 2.3 | 7.3 | 78 | 337 |
| YE3-250M-4 | 55 | 75 | 1480 | 104 | 93.5 | 0.86 | 2.2 | 2.3 | 7.3 | 79 | 410 |
| YE3-280S-4 | 75 | 100 | 1480 | 139 | 94 | 0.88 | 2.2 | 2.3 | 6.8 | 80 | 581 |
| YE3-280M-4 | 90 | 125 | 1480 | 166 | 94.2 | 0.88 | 2.2 | 2.3 | 6.9 | 80 | 643 |
| YE3-315S-4 | 110 | 150 | 1480 | 200 | 94.5 | 0.88 | 2.1 | 2.2 | 6.9 | 88 | 980 |
| YE3-315M-4 | 132 | 180 | 1480 | 240 | 94.7 | 0.88 | 2.1 | 2.2 | 6.9 | 88 | 1055 |
| YE3-315L1-4 | 160 | 215 | 1480 | 290 | 94.9 | 0.89 | 2.1 | 2.2 | 6.9 | 88 | 1155 |
| YE3-315L2-4 | 200 | 270 | 1480 | 360 | 95.1 | 0.89 | 2.1 | 2.2 | 6.9 | 88 | 1230 |
| YE3-80M1-6 | 0.37 | 0.5 | 910 | 1.3 | 71.4 | 0.7 | 2.0 | 2.1 | 4.7 | 57 | 18 |
| YE3-80M2-6 | 0.55 | 0.75 | 910 | 1.75 | 74.2 | 0.72 | 2.0 | 2.1 | 4.7 | 57 | 20.2 |
| YE3-90S-6 | 0.75 | 1.0 | 910 | 2.3 | 75.9 | 0.72 | 2.1 | 2.1 | 5.8 | 57 | 23 |
| YE3-90L-6 | 1.1 | 1.5 | 910 | 3.1 | 78.1 | 0.73 | 2.1 | 2.1 | 5.9 | 57 | 28.5 |
| YE3-100L-6 | 1.5 | 2.0 | 940 | 4.0 | 79.8 | 0.74 | 2.1 | 2.1 | 5.9 | 61 | 37.5 |
| YE3-112M-6 | 2.2 | 3.0 | 940 | 5.5 | 81.8 | 0.74 | 2.1 | 2.1 | 6.0 | 65 | 48 |
| YE3-132S-6 | 3.0 | 4.0 | 960 | 7.5 | 83.3 | 0.74 | 2.0 | 2.1 | 6.4 | 69 | 65 |
| YE3-132M1-6 | 4.0 | 5.5 | 960 | 9.5 | 84.6 | 0.74 | 2.0 | 2.1 | 6.6 | 69 | 73 |
| YE3-132M2-6 | 5.5 | 7.5 | 960 | 12.5 | 86 | 0.75 | 2.0 | 2.1 | 6.8 | 69 | 82 |
| YE3-160M-6 | 7.5 | 10 | 970 | 17 | 87.2 | 0.78 | 2.1 | 2.1 | 6.8 | 73 | 113 |
| YE3-160L-6 | 11 | 15 | 970 | 24 | 88.7 | 0.79 | 2.1 | 2.1 | 6.9 | 73 | 134 |
| YE3-180L-6 | 15 | 20 | 970 | 31 | 88.9 | 0.81 | 2.0 | 2.1 | 7.3 | 73 | 178 |
| YE3-200L1-6 | 18.5 | 25 | 980 | 38 | 90.4 | 0.81 | 2.1 | 2.1 | 7.2 | 73 | 226 |
| YE3-200L2-6 | 22 | 30 | 980 | 45 | 90.9 | 0.82 | 2.1 | 2.1 | 7.3 | 73 | 243 |
| YE3-225M-6 | 30 | 40 | 980 | 59 | 91.7 | 0.81 | 2.0 | 2.1 | 6.8 | 74 | 294 |
● Housing Material: Cast Iron/aluminum
●Terminal Box: Top/Side Mounted
● Protection Class: IP55
● Insulation Class: F/H
● Bearing: SKF/NSK/Chinese
● Frequency: 50/60HZ
● Ambient temperature: -15°C~40°C
● Altitude: not exceed 1000m
● Rated voltage: 380V(at buyer' s option)
● Rated frequency: 50HZ 60HZ(at buyer' s option)
● Cooling method: IC 411
● Duty: S1
Widely used as driving equipment of various machinery, such as, machine tools, blowers, pumps, compressors, transporters, agricultural and food processing.
As one of China professional electric motor manufacturers, hilair motor focuses on providing high-quality asynchronous three phase motor and excellent service for 20+ years’ experience. We are a professional manufacturer and factory of 30,000 M2 which mainly produce 3 phase motor, Single Phase Motor, reducer motor, axial fan motors products. We provide you with small electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about asynchronous three phase motor, asynchronous motor 3 phase, 1 hp 3 phase induction motor，3 phase asynchronous induction motor，0.5 hp 3 phase induction motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the specifications, solutions and customization options of 3 phase motor, Single Phase Motor, reducer motor, axial fan motors... Welcome you to visit our factory!
