We're professional 3 phase induction motor manufacturers and suppliers in China, to buy or wholesale 0.37 kw 3 phase motor from our factory. For quotation or if you have any questions, contact us now for customized 0.75 kw 3 phase motor and price.
The three-phases motor can also operate in single-phase mode when required. However, rated power at the same time decreases approximately twice. If one phase disappears, the engine can continue to work. Even it will be possible to launch a new cycle but with reduced power. Motors of this type have relative cheapness, good efficiency and reliability. Great quality of materials (Cold silicon steel/100% copper wire/ Aluminum frame), colorful wiring, clear nameplate, reliable package, high efficiency, low noise, best materials make best performance. These qualities have made three-phase motors the most popular type, used in the world.On our site you can find the motors of various parameters. The quality of our products meets all international standards and the price is lowest compared to our competitors.
| Motor Type | Power | Speed | InA | Efficiency | Power factor | TLR/Trated | Tmax/Trated | Ilr/I rated | LwdB (A) | Weight | |
| KW | HP | R/ min | 380V | 100% | Cos | KG | |||||
| YE3-80M1-2 | 0.75 | 1.0 | 2830 | 1.8 | 77.4 | 0.83 | 2.3 | 2.3 | 6.8 | 62 | 16 |
| YE3-80M2-2 | 1.1 | 1.5 | 2830 | 2.5 | 79.6 | 0.83 | 2.3 | 2.3 | 7.1 | 62 | 17.5 |
| YE3-90S-2 | 1.5 | 2.0 | 2840 | 3.4 | 81.3 | 0.84 | 2.3 | 2.3 | 7.3 | 67 | 23.5 |
| YE3-90L-2 | 2.2 | 3.0 | 2840 | 4.7 | 83.2 | 0.85 | 2.3 | 2.3 | 7.6 | 67 | 28.5 |
| YE3-100L-2 | 3.0 | 4.0 | 2880 | 6.2 | 84.6 | 0.87 | 2.2 | 2.3 | 7.8 | 74 | 38 |
| YE3-112M-2 | 4.0 | 5.5 | 2880 | 8 | 85.8 | 0.88 | 2.2 | 2.3 | 8.1 | 77 | 49 |
| YE3-132S1-2 | 5.5 | 7.5 | 2900 | 10.9 | 87 | 0.88 | 2.2 | 2.3 | 8.2 | 79 | 63 |
| YE3-132S2-2 | 7.5 | 10 | 2900 | 14.5 | 88.1 | 0.89 | 2.2 | 2.3 | 7.8 | 79 | 70 |
| YE3-160M1-2 | 11 | 15 | 2900 | 21 | 89.4 | 0.89 | 2.2 | 2.3 | 7.9 | 81 | 121 |
| YE3-160M2-2 | 15 | 20 | 2930 | 28 | 90.3 | 0.89 | 2.2 | 2.3 | 7.9 | 81 | 132 |
| YE3-160L-2 | 18.5 | 25 | 2930 | 34 | 90.9 | 0.89 | 2.2 | 2.3 | 8.0 | 81 | 138 |
| YE3-180M-2 | 22 | 30 | 2940 | 41 | 91.3 | 0.89 | 2.2 | 2.3 | 8.1 | 83 | 191 |
| YE3-200L1-2 | 30 | 40 | 2950 | 55 | 92 | 0.89 | 2.0 | 2.3 | 7.5 | 84 | 240 |
| YE3-200L2-2 | 37 | 50 | 2950 | 67 | 92.5 | 0.89 | 2.0 | 2.3 | 7.5 | 84 | 257 |
| YE3-225M-2 | 45 | 60 | 2970 | 81 | 92.9 | 0.89 | 2.2 | 2.3 | 7.6 | 86 | 310 |
| YE3-250M-2 | 55 | 75 | 2970 | 100 | 93.2 | 0.89 | 2.2 | 2.3 | 7.6 | 89 | 386 |
| YE3-280S-2 | 75 | 100 | 2970 | 134 | 93.8 | 0.89 | 1.8 | 2.3 | 6.9 | 91 | 505 |
| YE3-280M-2 | 90 | 125 | 2970 | 160 | 94.1 | 0.89 | 1.8 | 2.3 | 6.9 | 91 | 555 |
| YE3-315S-2 | 110 | 150 | 2980 | 195 | 94.3 | 0.90 | 1.8 | 2.2 | 7.0 | 92 | 975 |
| YE3-315M-2 | 132 | 180 | 2980 | 232 | 94.6 | 0.90 | 1.8 | 2.2 | 7.0 | 92 | 1035 |
| YE3-315L1-2 | 160 | 215 | 2980 | 280 | 94.8 | 0.91 | 1.8 | 2.2 | 7.1 | 92 | 1130 |
| YE3-315L2-2 | 200 | 270 | 2980 | 350 | 95 | 0.91 | 1.8 | 2.2 | 7.1 | 92 | 1220 |
| YE3-80M1-4 | 0.55 | 0.75 | 1390 | 1.56 | 76.5 | 0.75 | 2.3 | 2.3 | 6.3 | 56 | 17 |
| YE3-80M2-4 | 0.75 | 1.0 | 1390 | 2.0 | 79.6 | 0.75 | 2.3 | 2.3 | 6.4 | 56 | 18.5 |
| YE3-90S-4 | 1.1 | 1.5 | 1400 | 2.8 | 81 | 0.75 | 2.3 | 2.3 | 6.6 | 59 | 24 |
| YE3-90L-4 | 1.5 | 2.0 | 1400 | 3.7 | 82.8 | 0.75 | 2.3 | 2.3 | 6.7 | 59 | 29.5 |
| YE3-100L1-4 | 2.2 | 3.0 | 1430 | 5.1 | 84.3 | 0.81 | 2.3 | 2.3 | 7.3 | 64 | 39.5 |
| YE3-100L2-4 | 3.0 | 4.0 | 1430 | 6.7 | 85.5 | 0.82 | 2.3 | 2.3 | 7.5 | 64 | 43.5 |
| YE3-112M-4 | 4.0 | 5.5 | 1440 | 8.7 | 86.6 | 0.82 | 2.3 | 2.3 | 7.5 | 65 | 52 |
| YE3-132S-4 | 5.5 | 7.5 | 1440 | 11.6 | 87.7 | 0.82 | 2.0 | 2.3 | 7.5 | 71 | 66 |
| YE3-132M-4 | 7.5 | 10 | 1440 | 15.5 | 88.7 | 0.83 | 2.0 | 2.3 | 7.4 | 71 | 78 |
| YE3-160M-4 | 11 | 15 | 1460 | 22.4 | 89.8 | 0.85 | 2.0 | 2.3 | 7.5 | 73 | 122 |
| YE3-160L-4 | 15 | 20 | 1460 | 30 | 90.6 | 0.86 | 2.0 | 2.3 | 7.5 | 73 | 139 |
| YE3-180M-4 | 18.5 | 25 | 1470 | 36.5 | 91.2 | 0.86 | 2.0 | 2.3 | 7.6 | 76 | 188 |
| YE3-180L-4 | 22 | 30 | 1470 | 43 | 91.6 | 0.86 | 2.1 | 2.3 | 7.7 | 76 | 193 |
| YE3-200L-4 | 30 | 40 | 1470 | 58 | 92.3 | 0.86 | 2.1 | 2.3 | 7.1 | 76 | 256 |
| YE3-225S-4 | 37 | 50 | 1475 | 70 | 92.7 | 0.86 | 2.1 | 2.3 | 7.3 | 78 | 308 |
| YE3-225M--4 | 45 | 60 | 1475 | 85 | 93.1 | 0.86 | 2.2 | 2.3 | 7.3 | 78 | 337 |
| YE3-250M-4 | 55 | 75 | 1480 | 104 | 93.5 | 0.86 | 2.2 | 2.3 | 7.3 | 79 | 410 |
| YE3-280S-4 | 75 | 100 | 1480 | 139 | 94 | 0.88 | 2.2 | 2.3 | 6.8 | 80 | 581 |
| YE3-280M-4 | 90 | 125 | 1480 | 166 | 94.2 | 0.88 | 2.2 | 2.3 | 6.9 | 80 | 643 |
| YE3-315S-4 | 110 | 150 | 1480 | 200 | 94.5 | 0.88 | 2.1 | 2.2 | 6.9 | 88 | 980 |
| YE3-315M-4 | 132 | 180 | 1480 | 240 | 94.7 | 0.88 | 2.1 | 2.2 | 6.9 | 88 | 1055 |
| YE3-315L1-4 | 160 | 215 | 1480 | 290 | 94.9 | 0.89 | 2.1 | 2.2 | 6.9 | 88 | 1155 |
| YE3-315L2-4 | 200 | 270 | 1480 | 360 | 95.1 | 0.89 | 2.1 | 2.2 | 6.9 | 88 | 1230 |
| YE3-80M1-6 | 0.37 | 0.5 | 910 | 1.3 | 71.4 | 0.7 | 2.0 | 2.1 | 4.7 | 57 | 18 |
| YE3-80M2-6 | 0.55 | 0.75 | 910 | 1.75 | 74.2 | 0.72 | 2.0 | 2.1 | 4.7 | 57 | 20.2 |
| YE3-90S-6 | 0.75 | 1.0 | 910 | 2.3 | 75.9 | 0.72 | 2.1 | 2.1 | 5.8 | 57 | 23 |
| YE3-90L-6 | 1.1 | 1.5 | 910 | 3.1 | 78.1 | 0.73 | 2.1 | 2.1 | 5.9 | 57 | 28.5 |
| YE3-100L-6 | 1.5 | 2.0 | 940 | 4.0 | 79.8 | 0.74 | 2.1 | 2.1 | 5.9 | 61 | 37.5 |
| YE3-112M-6 | 2.2 | 3.0 | 940 | 5.5 | 81.8 | 0.74 | 2.1 | 2.1 | 6.0 | 65 | 48 |
| YE3-132S-6 | 3.0 | 4.0 | 960 | 7.5 | 83.3 | 0.74 | 2.0 | 2.1 | 6.4 | 69 | 65 |
| YE3-132M1-6 | 4.0 | 5.5 | 960 | 9.5 | 84.6 | 0.74 | 2.0 | 2.1 | 6.6 | 69 | 73 |
| YE3-132M2-6 | 5.5 | 7.5 | 960 | 12.5 | 86 | 0.75 | 2.0 | 2.1 | 6.8 | 69 | 82 |
| YE3-160M-6 | 7.5 | 10 | 970 | 17 | 87.2 | 0.78 | 2.1 | 2.1 | 6.8 | 73 | 113 |
| YE3-160L-6 | 11 | 15 | 970 | 24 | 88.7 | 0.79 | 2.1 | 2.1 | 6.9 | 73 | 134 |
| YE3-180L-6 | 15 | 20 | 970 | 31 | 88.9 | 0.81 | 2.0 | 2.1 | 7.3 | 73 | 178 |
| YE3-200L1-6 | 18.5 | 25 | 980 | 38 | 90.4 | 0.81 | 2.1 | 2.1 | 7.2 | 73 | 226 |
| YE3-200L2-6 | 22 | 30 | 980 | 45 | 90.9 | 0.82 | 2.1 | 2.1 | 7.3 | 73 | 243 |
| YE3-225M-6 | 30 | 40 | 980 | 59 | 91.7 | 0.81 | 2.0 | 2.1 | 6.8 | 74 | 294 |
The motor apply to economic lake-off fields, such as machine tools, water pump, fan, compressor, also can be applied to transportation, stirring, printing, agricultural machinery, food and other kinds of excluding inflammable, explosive or corrosive gas.

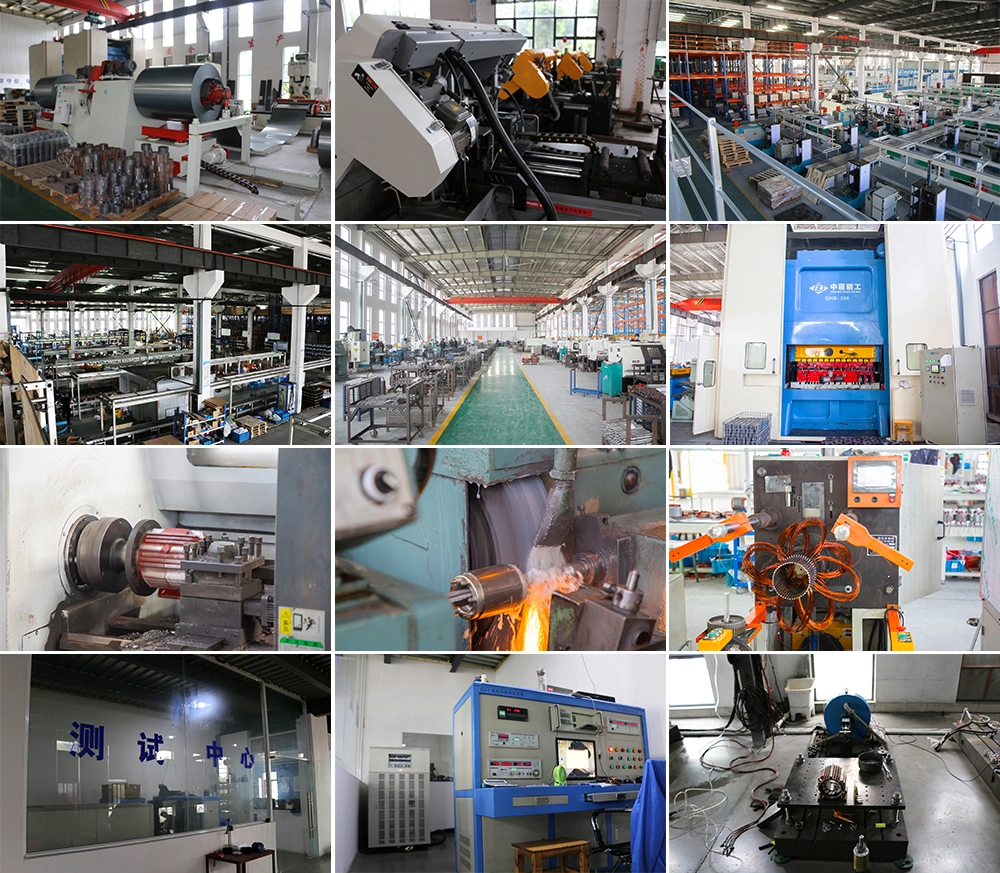

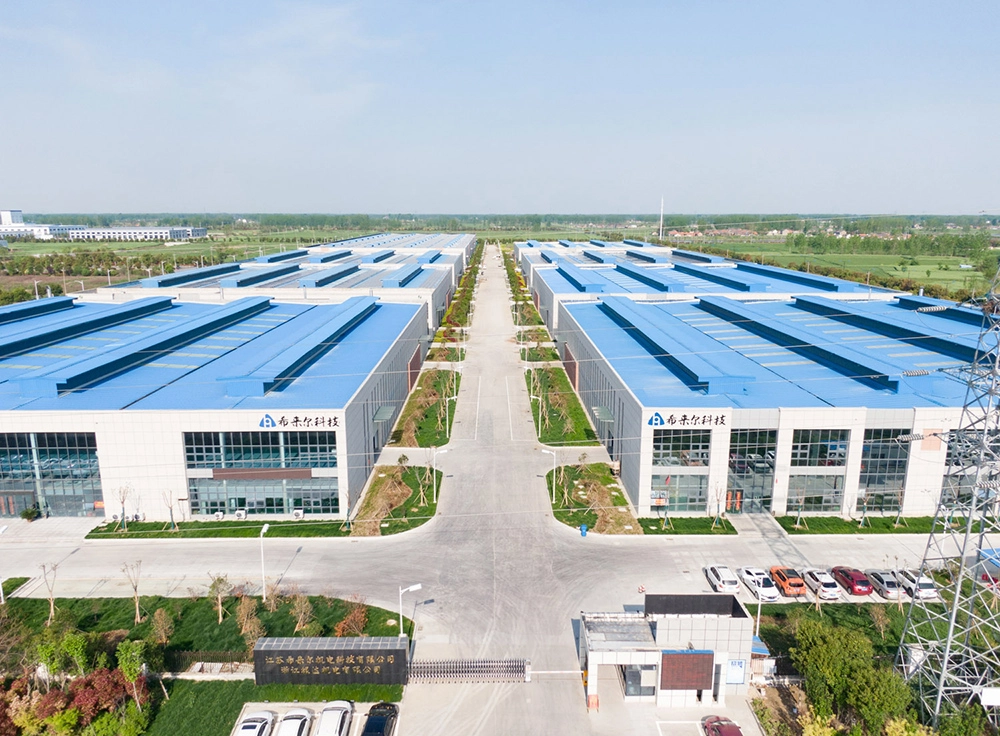

As one of China professional electric motor manufacturers, hilair motor focuses on providing high-quality 3 phase induction motor and excellent service for 20+ years’ experience. We are a professional manufacturer and factory of 30,000 M2 which mainly produce 3 phase motor, Single Phase Motor, reducer motor, axial fan motors products. We provide you with small electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about 3 phase induction motor, 0.37 kw 3 phase motor, 0.75 kw 3 phase motor,3 phase induction motor for elevator, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the specifications, solutions and customization options of 3 phase motor, Single Phase Motor, reducer motor, axial fan motors... Welcome you to visit our factory!
