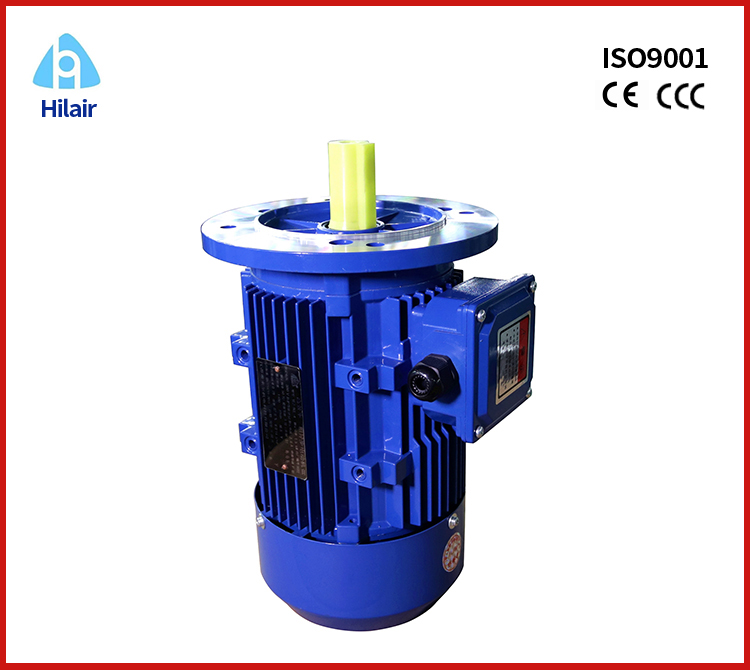

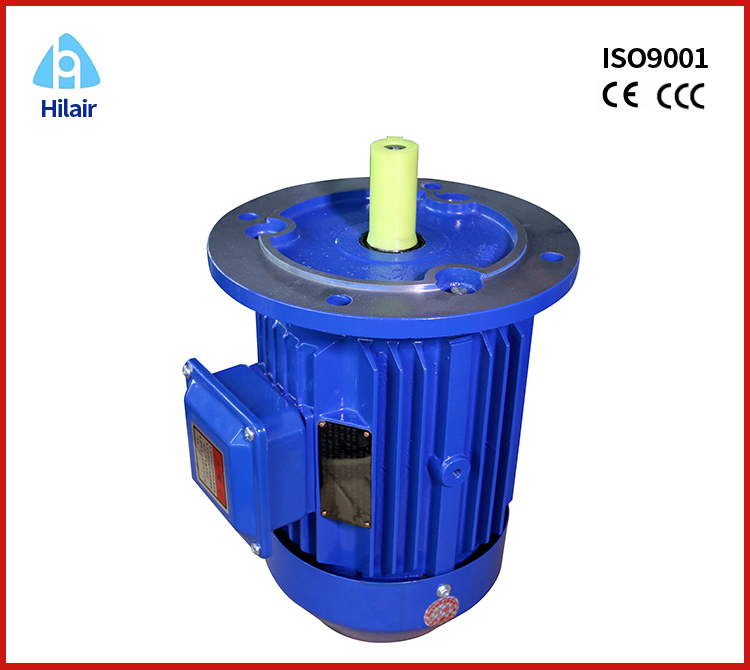

We're professional 3 phase 4 pole induction motor manufacturers and suppliers in China, to buy or wholesale 3 phase 4 pole ac induction motor from our factory. For quotation or if you have any questions, contact us now for customized 4 pole motor 3 phase and price.
The three-phase AC induction motor is a rotating electric machine that is designed to operate on a three-phase supply. This 3 phase motor is also called as an asynchronous motor. These AC motors are of two types: squirrel and slip-ring type induction motors. The principle of operation of this motor is based on the production of a rotating magnetic field.Three Phase Induction Motor is specially designed for European market, whose terminal box is located on the top of motor.They are totally enclosed and fan-cooling designed. They are newly designed in conformity with the relevant requirements (rules of IEC standards).For the Connection Model of 2p 4p 6p 8p Y2 motor, please refer to the Name Plate on the motor (The Y Connection is adopted by motors' Output equal or below 3kW; The Delta-Connection is adopted by motors' Output above 4kW).
| Motor Type | Power | Speed | InA | Efficiency | Power factor | TLR/ Trated | Tmax/Trated | Ilr/I rated | LwdB (A) | Weight | |
| KW | HP | R/ min | 380V | 100% | Cos | KG | |||||
| YE3-80M1-2 | 0.75 | 1.0 | 2830 | 1.8 | 77.4 | 0.83 | 2.3 | 2.3 | 6.8 | 62 | 16 |
| YE3-80M2-2 | 1.1 | 1.5 | 2830 | 2.5 | 79.6 | 0.83 | 2.3 | 2.3 | 7.1 | 62 | 17.5 |
| YE3-90S-2 | 1.5 | 2.0 | 2840 | 3.4 | 81.3 | 0.84 | 2.3 | 2.3 | 7.3 | 67 | 23.5 |
| YE3-90L-2 | 2.2 | 3.0 | 2840 | 4.7 | 83.2 | 0.85 | 2.3 | 2.3 | 7.6 | 67 | 28.5 |
| YE3-100L-2 | 3.0 | 4.0 | 2880 | 6.2 | 84.6 | 0.87 | 2.2 | 2.3 | 7.8 | 74 | 38 |
| YE3-112M-2 | 4.0 | 5.5 | 2880 | 8 | 85.8 | 0.88 | 2.2 | 2.3 | 8.1 | 77 | 49 |
| YE3-132S1-2 | 5.5 | 7.5 | 2900 | 10.9 | 87 | 0.88 | 2.2 | 2.3 | 8.2 | 79 | 63 |
| YE3-132S2-2 | 7.5 | 10 | 2900 | 14.5 | 88.1 | 0.89 | 2.2 | 2.3 | 7.8 | 79 | 70 |
| YE3-160M1-2 | 11 | 15 | 2900 | 21 | 89.4 | 0.89 | 2.2 | 2.3 | 7.9 | 81 | 121 |
| YE3-160M2-2 | 15 | 20 | 2930 | 28 | 90.3 | 0.89 | 2.2 | 2.3 | 7.9 | 81 | 132 |
| YE3-160L-2 | 18.5 | 25 | 2930 | 34 | 90.9 | 0.89 | 2.2 | 2.3 | 8.0 | 81 | 138 |
| YE3-180M-2 | 22 | 30 | 2940 | 41 | 91.3 | 0.89 | 2.2 | 2.3 | 8.1 | 83 | 191 |
| YE3-200L1-2 | 30 | 40 | 2950 | 55 | 92 | 0.89 | 2.0 | 2.3 | 7.5 | 84 | 240 |
| YE3-200L2-2 | 37 | 50 | 2950 | 67 | 92.5 | 0.89 | 2.0 | 2.3 | 7.5 | 84 | 257 |
| YE3-225M-2 | 45 | 60 | 2970 | 81 | 92.9 | 0.89 | 2.2 | 2.3 | 7.6 | 86 | 310 |
| YE3-250M-2 | 55 | 75 | 2970 | 100 | 93.2 | 0.89 | 2.2 | 2.3 | 7.6 | 89 | 386 |
| YE3-280S-2 | 75 | 100 | 2970 | 134 | 93.8 | 0.89 | 1.8 | 2.3 | 6.9 | 91 | 505 |
| YE3-280M-2 | 90 | 125 | 2970 | 160 | 94.1 | 0.89 | 1.8 | 2.3 | 6.9 | 91 | 555 |
| YE3-315S-2 | 110 | 150 | 2980 | 195 | 94.3 | 0.90 | 1.8 | 2.2 | 7.0 | 92 | 975 |
| YE3-315M-2 | 132 | 180 | 2980 | 232 | 94.6 | 0.90 | 1.8 | 2.2 | 7.0 | 92 | 1035 |
| YE3-315L1-2 | 160 | 215 | 2980 | 280 | 94.8 | 0.91 | 1.8 | 2.2 | 7.1 | 92 | 1130 |
| YE3-315L2-2 | 200 | 270 | 2980 | 350 | 95 | 0.91 | 1.8 | 2.2 | 7.1 | 92 | 1220 |
| YE3-80M1-4 | 0.55 | 0.75 | 1390 | 1.56 | 76.5 | 0.75 | 2.3 | 2.3 | 6.3 | 56 | 17 |
| YE3-80M2-4 | 0.75 | 1.0 | 1390 | 2.0 | 79.6 | 0.75 | 2.3 | 2.3 | 6.4 | 56 | 18.5 |
| YE3-90S-4 | 1.1 | 1.5 | 1400 | 2.8 | 81 | 0.75 | 2.3 | 2.3 | 6.6 | 59 | 24 |
| YE3-90L-4 | 1.5 | 2.0 | 1400 | 3.7 | 82.8 | 0.75 | 2.3 | 2.3 | 6.7 | 59 | 29.5 |
| YE3-100L1-4 | 2.2 | 3.0 | 1430 | 5.1 | 84.3 | 0.81 | 2.3 | 2.3 | 7.3 | 64 | 39.5 |
| YE3-100L2-4 | 3.0 | 4.0 | 1430 | 6.7 | 85.5 | 0.82 | 2.3 | 2.3 | 7.5 | 64 | 43.5 |
| YE3-112M-4 | 4.0 | 5.5 | 1440 | 8.7 | 86.6 | 0.82 | 2.3 | 2.3 | 7.5 | 65 | 52 |
| YE3-132S-4 | 5.5 | 7.5 | 1440 | 11.6 | 87.7 | 0.82 | 2.0 | 2.3 | 7.5 | 71 | 66 |
| YE3-132M-4 | 7.5 | 10 | 1440 | 15.5 | 88.7 | 0.83 | 2.0 | 2.3 | 7.4 | 71 | 78 |
| YE3-160M-4 | 11 | 15 | 1460 | 22.4 | 89.8 | 0.85 | 2.0 | 2.3 | 7.5 | 73 | 122 |
| YE3-160L-4 | 15 | 20 | 1460 | 30 | 90.6 | 0.86 | 2.0 | 2.3 | 7.5 | 73 | 139 |
| YE3-180M-4 | 18.5 | 25 | 1470 | 36.5 | 91.2 | 0.86 | 2.0 | 2.3 | 7.6 | 76 | 188 |
| YE3-180L-4 | 22 | 30 | 1470 | 43 | 91.6 | 0.86 | 2.1 | 2.3 | 7.7 | 76 | 193 |
| YE3-200L-4 | 30 | 40 | 1470 | 58 | 92.3 | 0.86 | 2.1 | 2.3 | 7.1 | 76 | 256 |
| YE3-225S-4 | 37 | 50 | 1475 | 70 | 92.7 | 0.86 | 2.1 | 2.3 | 7.3 | 78 | 308 |
| YE3-225M--4 | 45 | 60 | 1475 | 85 | 93.1 | 0.86 | 2.2 | 2.3 | 7.3 | 78 | 337 |
| YE3-250M-4 | 55 | 75 | 1480 | 104 | 93.5 | 0.86 | 2.2 | 2.3 | 7.3 | 79 | 410 |
| YE3-280S-4 | 75 | 100 | 1480 | 139 | 94 | 0.88 | 2.2 | 2.3 | 6.8 | 80 | 581 |
| YE3-280M-4 | 90 | 125 | 1480 | 166 | 94.2 | 0.88 | 2.2 | 2.3 | 6.9 | 80 | 643 |
| YE3-315S-4 | 110 | 150 | 1480 | 200 | 94.5 | 0.88 | 2.1 | 2.2 | 6.9 | 88 | 980 |
| YE3-315M-4 | 132 | 180 | 1480 | 240 | 94.7 | 0.88 | 2.1 | 2.2 | 6.9 | 88 | 1055 |
| YE3-315L1-4 | 160 | 215 | 1480 | 290 | 94.9 | 0.89 | 2.1 | 2.2 | 6.9 | 88 | 1155 |
| YE3-315L2-4 | 200 | 270 | 1480 | 360 | 95.1 | 0.89 | 2.1 | 2.2 | 6.9 | 88 | 1230 |
| YE3-80M1-6 | 0.37 | 0.5 | 910 | 1.3 | 71.4 | 0.7 | 2.0 | 2.1 | 4.7 | 57 | 18 |
| YE3-80M2-6 | 0.55 | 0.75 | 910 | 1.75 | 74.2 | 0.72 | 2.0 | 2.1 | 4.7 | 57 | 20.2 |
| YE3-90S-6 | 0.75 | 1.0 | 910 | 2.3 | 75.9 | 0.72 | 2.1 | 2.1 | 5.8 | 57 | 23 |
| YE3-90L-6 | 1.1 | 1.5 | 910 | 3.1 | 78.1 | 0.73 | 2.1 | 2.1 | 5.9 | 57 | 28.5 |
| YE3-100L-6 | 1.5 | 2.0 | 940 | 4.0 | 79.8 | 0.74 | 2.1 | 2.1 | 5.9 | 61 | 37.5 |
| YE3-112M-6 | 2.2 | 3.0 | 940 | 5.5 | 81.8 | 0.74 | 2.1 | 2.1 | 6.0 | 65 | 48 |
| YE3-132S-6 | 3.0 | 4.0 | 960 | 7.5 | 83.3 | 0.74 | 2.0 | 2.1 | 6.4 | 69 | 65 |
| YE3-132M1-6 | 4.0 | 5.5 | 960 | 9.5 | 84.6 | 0.74 | 2.0 | 2.1 | 6.6 | 69 | 73 |
| YE3-132M2-6 | 5.5 | 7.5 | 960 | 12.5 | 86 | 0.75 | 2.0 | 2.1 | 6.8 | 69 | 82 |
| YE3-160M-6 | 7.5 | 10 | 970 | 17 | 87.2 | 0.78 | 2.1 | 2.1 | 6.8 | 73 | 113 |
| YE3-160L-6 | 11 | 15 | 970 | 24 | 88.7 | 0.79 | 2.1 | 2.1 | 6.9 | 73 | 134 |
| YE3-180L-6 | 15 | 20 | 970 | 31 | 88.9 | 0.81 | 2.0 | 2.1 | 7.3 | 73 | 178 |
| YE3-200L1-6 | 18.5 | 25 | 980 | 38 | 90.4 | 0.81 | 2.1 | 2.1 | 7.2 | 73 | 226 |
| YE3-200L2-6 | 22 | 30 | 980 | 45 | 90.9 | 0.82 | 2.1 | 2.1 | 7.3 | 73 | 243 |
| YE3-225M-6 | 30 | 40 | 980 | 59 | 91.7 | 0.81 | 2.0 | 2.1 | 6.8 | 74 | 294 |
● Housing Material: Cast Iron/aluminum
● Terminal Box: Top/Side Mounted
● Protection Class: IP55
● Insulation Class: F/H
● Bearing: SKF/NSK/Chinese
● Frequency: 50/60HZ
● Ambient temperature: -15°C~40°C
● Altitude: not exceed 1000m
● Rated voltage: 380V(at buyer' s option)
● Rated frequency: 50HZ 60HZ(at buyer' s option)
● Cooling method: IC 411
● Duty: S1
The popularity of 3 phase induction motors on board ships is because of their simple, robust construction, and high-reliability factor in the sea environment. An induction motor can be used for different applications with various speed and load requirements.

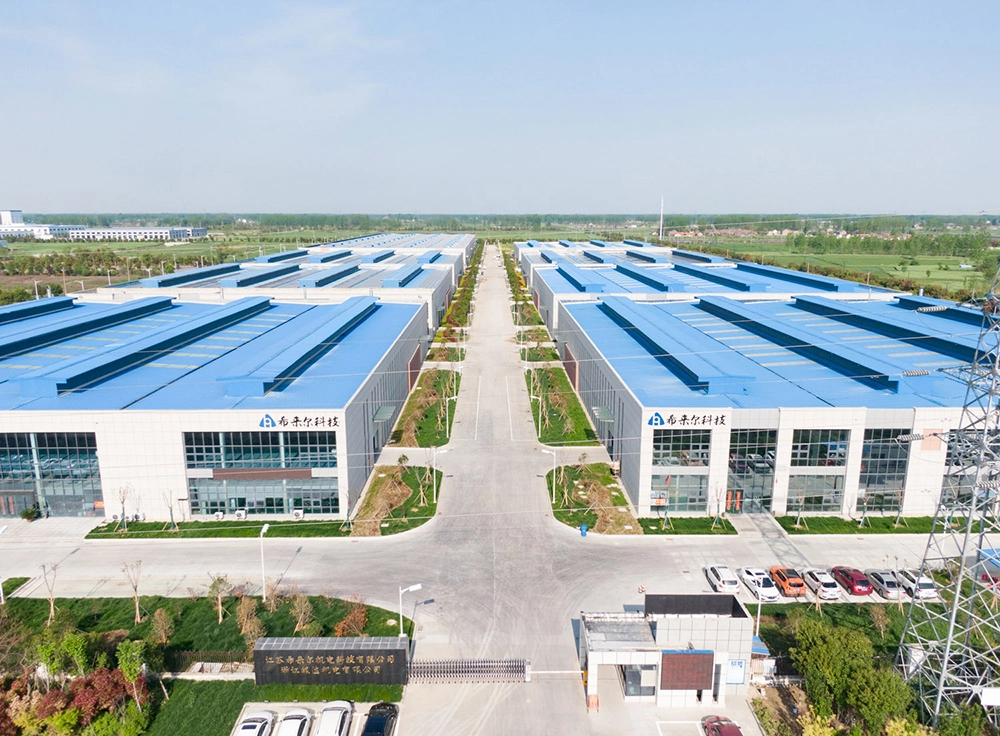

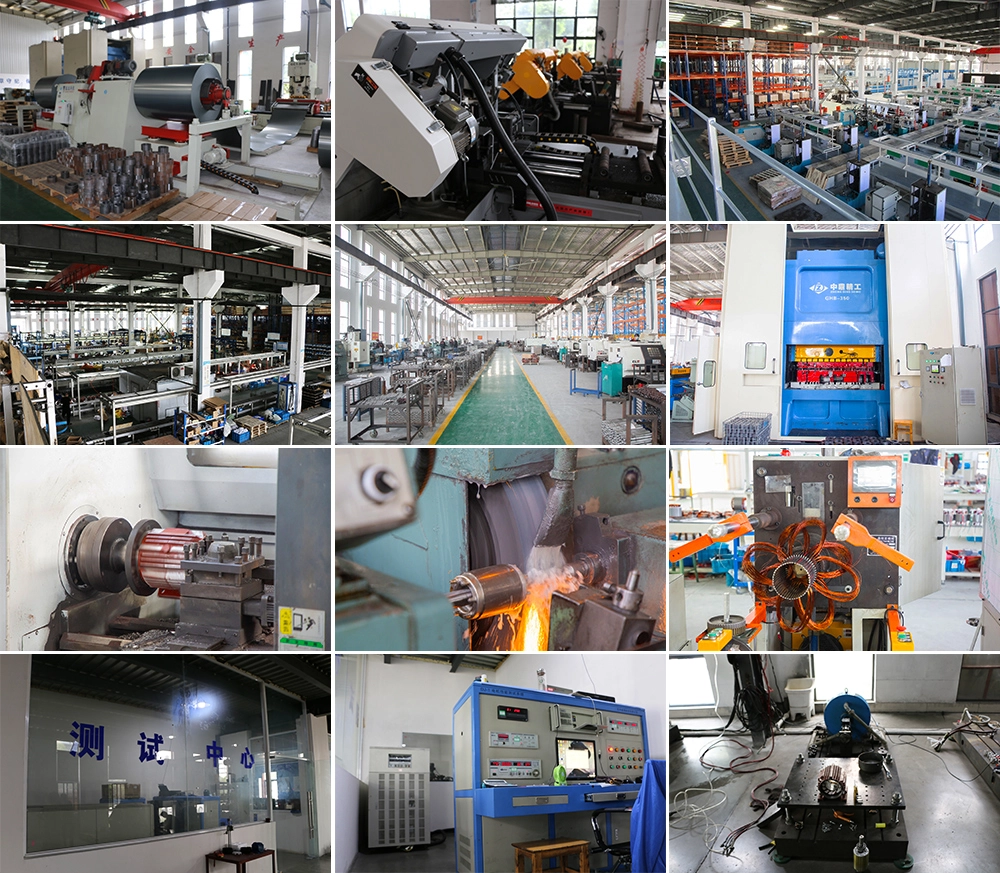

As one of China professional electric motor manufacturers, hilair motor focuses on providing high-quality 3 phase 4 pole induction motor and excellent service for 20+ years’ experience. We are a professional manufacturer and factory of 30,000 M2 which mainly produce 3 phase motor, Single Phase Motor, reducer motor, axial fan motors products. We provide you with small electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about 3 phase 4 pole induction motor, 3 phase 4 pole ac induction motor, 4 pole motor 3 phase,2 pole 3 phase induction motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the specifications, solutions and customization options of 3 phase motor, Single Phase Motor, reducer motor, axial fan motors... Welcome you to visit our factory!
