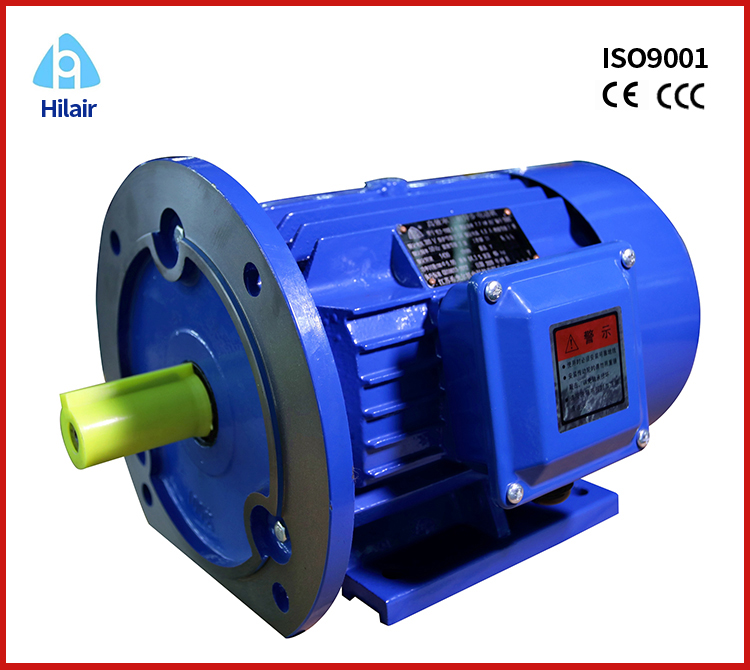

low noise three Phase Asynchronous Motor

Low Noise Three Phase Asynchronous Motor

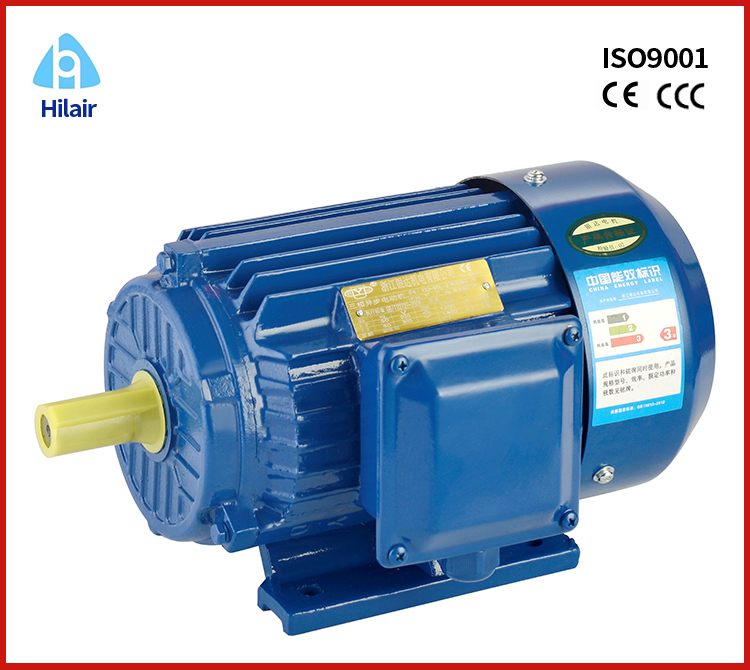

Low noise three Phase Asynchronous Motor is also called 3 hp three phase motor or 2hp three phase motor。

● highly efficient；

● energy saving；

● high starting moment；

● low noise；

● small vibration；

● safe and reliable operation。

Availability:

Quantity:



Inquire Add to Basket

Product Description

We're professional low noise three Phase Asynchronous Motor manufacturers and suppliers in China, to buy or wholesale 3 hp three phase motor from our factory. For quotation or if you have any questions, contact us now for customized 2hp three phase motor and price.

Three-phase asynchronous motor (center height: H80 ~ 355) is a fully enclosed self-fanned-type squirrel-cage three-phase asynchronous motor, which is the basic series of unified national design. They are highly efficient, energy saving, high starting moment, low noise, small vibration, safe and reliable operation.The power rating and mounting dimensions are in full compliance with IEC standard.

Technical parameters

Motor Type	Power		Speed	InA	Efficiency	Power factor	TLR/ Trated	Tmax/Trated	Ilr/I rated	LwdB (A)	Weight
Motor Type	KW	HP	R/ min	380V	100%	Cos	TLR/ Trated	Tmax/Trated	Ilr/I rated	LwdB (A)	KG
YE3-80M1-2	0.75	1.0	2830	1.8	77.4	0.83	2.3	2.3	6.8	62	16
YE3-80M2-2	1.1	1.5	2830	2.5	79.6	0.83	2.3	2.3	7.1	62	17.5
YE3-90S-2	1.5	2.0	2840	3.4	81.3	0.84	2.3	2.3	7.3	67	23.5
YE3-90L-2	2.2	3.0	2840	4.7	83.2	0.85	2.3	2.3	7.6	67	28.5
YE3-100L-2	3.0	4.0	2880	6.2	84.6	0.87	2.2	2.3	7.8	74	38
YE3-112M-2	4.0	5.5	2880	8	85.8	0.88	2.2	2.3	8.1	77	49
YE3-132S1-2	5.5	7.5	2900	10.9	87	0.88	2.2	2.3	8.2	79	63
YE3-132S2-2	7.5	10	2900	14.5	88.1	0.89	2.2	2.3	7.8	79	70
YE3-160M1-2	11	15	2900	21	89.4	0.89	2.2	2.3	7.9	81	121
YE3-160M2-2	15	20	2930	28	90.3	0.89	2.2	2.3	7.9	81	132
YE3-160L-2	18.5	25	2930	34	90.9	0.89	2.2	2.3	8.0	81	138
YE3-180M-2	22	30	2940	41	91.3	0.89	2.2	2.3	8.1	83	191
YE3-200L1-2	30	40	2950	55	92	0.89	2.0	2.3	7.5	84	240
YE3-200L2-2	37	50	2950	67	92.5	0.89	2.0	2.3	7.5	84	257
YE3-225M-2	45	60	2970	81	92.9	0.89	2.2	2.3	7.6	86	310
YE3-250M-2	55	75	2970	100	93.2	0.89	2.2	2.3	7.6	89	386
YE3-280S-2	75	100	2970	134	93.8	0.89	1.8	2.3	6.9	91	505
YE3-280M-2	90	125	2970	160	94.1	0.89	1.8	2.3	6.9	91	555
YE3-315S-2	110	150	2980	195	94.3	0.90	1.8	2.2	7.0	92	975
YE3-315M-2	132	180	2980	232	94.6	0.90	1.8	2.2	7.0	92	1035
YE3-315L1-2	160	215	2980	280	94.8	0.91	1.8	2.2	7.1	92	1130
YE3-315L2-2	200	270	2980	350	95	0.91	1.8	2.2	7.1	92	1220
YE3-80M1-4	0.55	0.75	1390	1.56	76.5	0.75	2.3	2.3	6.3	56	17
YE3-80M2-4	0.75	1.0	1390	2.0	79.6	0.75	2.3	2.3	6.4	56	18.5
YE3-90S-4	1.1	1.5	1400	2.8	81	0.75	2.3	2.3	6.6	59	24
YE3-90L-4	1.5	2.0	1400	3.7	82.8	0.75	2.3	2.3	6.7	59	29.5
YE3-100L1-4	2.2	3.0	1430	5.1	84.3	0.81	2.3	2.3	7.3	64	39.5
YE3-100L2-4	3.0	4.0	1430	6.7	85.5	0.82	2.3	2.3	7.5	64	43.5
YE3-112M-4	4.0	5.5	1440	8.7	86.6	0.82	2.3	2.3	7.5	65	52
YE3-132S-4	5.5	7.5	1440	11.6	87.7	0.82	2.0	2.3	7.5	71	66
YE3-132M-4	7.5	10	1440	15.5	88.7	0.83	2.0	2.3	7.4	71	78
YE3-160M-4	11	15	1460	22.4	89.8	0.85	2.0	2.3	7.5	73	122
YE3-160L-4	15	20	1460	30	90.6	0.86	2.0	2.3	7.5	73	139
YE3-180M-4	18.5	25	1470	36.5	91.2	0.86	2.0	2.3	7.6	76	188
YE3-180L-4	22	30	1470	43	91.6	0.86	2.1	2.3	7.7	76	193
YE3-200L-4	30	40	1470	58	92.3	0.86	2.1	2.3	7.1	76	256
YE3-225S-4	37	50	1475	70	92.7	0.86	2.1	2.3	7.3	78	308
YE3-225M--4	45	60	1475	85	93.1	0.86	2.2	2.3	7.3	78	337

YE3-250M-4	55	75	1480	104	93.5	0.86	2.2	2.3	7.3	79	410
YE3-280S-4	75	100	1480	139	94	0.88	2.2	2.3	6.8	80	581
YE3-280M-4	90	125	1480	166	94.2	0.88	2.2	2.3	6.9	80	643
YE3-315S-4	110	150	1480	200	94.5	0.88	2.1	2.2	6.9	88	980
YE3-315M-4	132	180	1480	240	94.7	0.88	2.1	2.2	6.9	88	1055
YE3-315L1-4	160	215	1480	290	94.9	0.89	2.1	2.2	6.9	88	1155
YE3-315L2-4	200	270	1480	360	95.1	0.89	2.1	2.2	6.9	88	1230
YE3-80M1-6	0.37	0.5	910	1.3	71.4	0.7	2.0	2.1	4.7	57	18
YE3-80M2-6	0.55	0.75	910	1.75	74.2	0.72	2.0	2.1	4.7	57	20.2
YE3-90S-6	0.75	1.0	910	2.3	75.9	0.72	2.1	2.1	5.8	57	23
YE3-90L-6	1.1	1.5	910	3.1	78.1	0.73	2.1	2.1	5.9	57	28.5
YE3-100L-6	1.5	2.0	940	4.0	79.8	0.74	2.1	2.1	5.9	61	37.5
YE3-112M-6	2.2	3.0	940	5.5	81.8	0.74	2.1	2.1	6.0	65	48
YE3-132S-6	3.0	4.0	960	7.5	83.3	0.74	2.0	2.1	6.4	69	65
YE3-132M1-6	4.0	5.5	960	9.5	84.6	0.74	2.0	2.1	6.6	69	73
YE3-132M2-6	5.5	7.5	960	12.5	86	0.75	2.0	2.1	6.8	69	82
YE3-160M-6	7.5	10	970	17	87.2	0.78	2.1	2.1	6.8	73	113
YE3-160L-6	11	15	970	24	88.7	0.79	2.1	2.1	6.9	73	134
YE3-180L-6	15	20	970	31	88.9	0.81	2.0	2.1	7.3	73	178
YE3-200L1-6	18.5	25	980	38	90.4	0.81	2.1	2.1	7.2	73	226
YE3-200L2-6	22	30	980	45	90.9	0.82	2.1	2.1	7.3	73	243
YE3-225M-6	30	40	980	59	91.7	0.81	2.0	2.1	6.8	74	294

Product Properties

● Protection Class: IP55
● Insulation Grade: F
● Cooling Way: IC411
● Duty Type: S1

Applications of low noise three Phase Asynchronous Motor

Special designed for marine equipment and environment, motors with high performance and high reliability are widely used by leading marine equipment manufactures.

hilair motor

Production scene

low noise three Phase Asynchronous Motor Manufacturer

As one of China professional electric motor manufacturers, hilair motor focuses on providing high-quality low noise three Phase Asynchronous Motor and excellent service for 20+ years’ experience. We are a professional manufacturer and factory of 30,000 M² which mainly produce 3 phase motor, Single Phase Motor, reducer motor, axial fan motors products. We provide you with small electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.

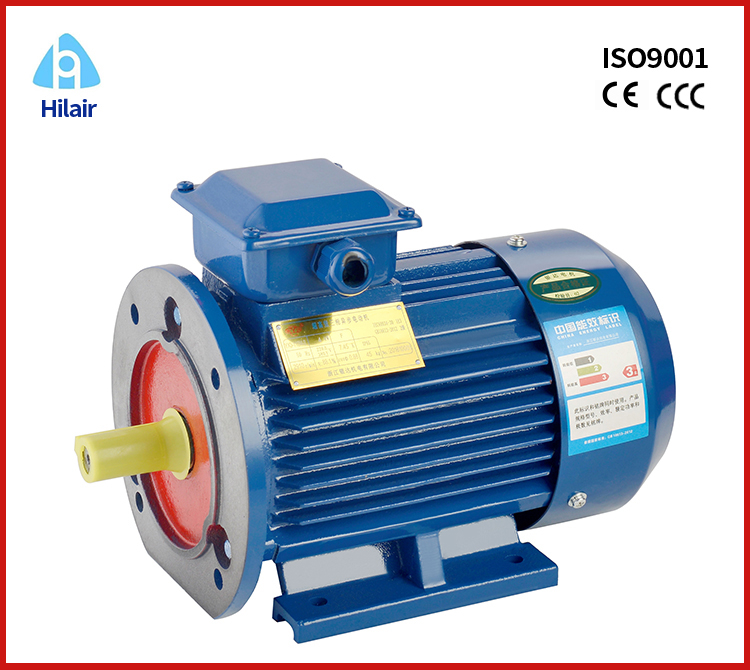

If you have any questions about low noise three Phase Asynchronous Motor, 3 hp three phase motor, 2hp three phase motor,7.5 hp 3 phase Asynchronous motor,3 phase 20 hp motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the specifications, solutions and customization options of 3 phase motor, Single Phase Motor, reducer motor, axial fan motors... Welcome you to visit our factory!
