We're professional 3 phase industrial motor manufacturers and suppliers in China, to buy or wholesale industrial 3 phase motors from our factory. For quotation or if you have any questions, contact us now for customized 1.5 hp 3 phase induction motor and price.

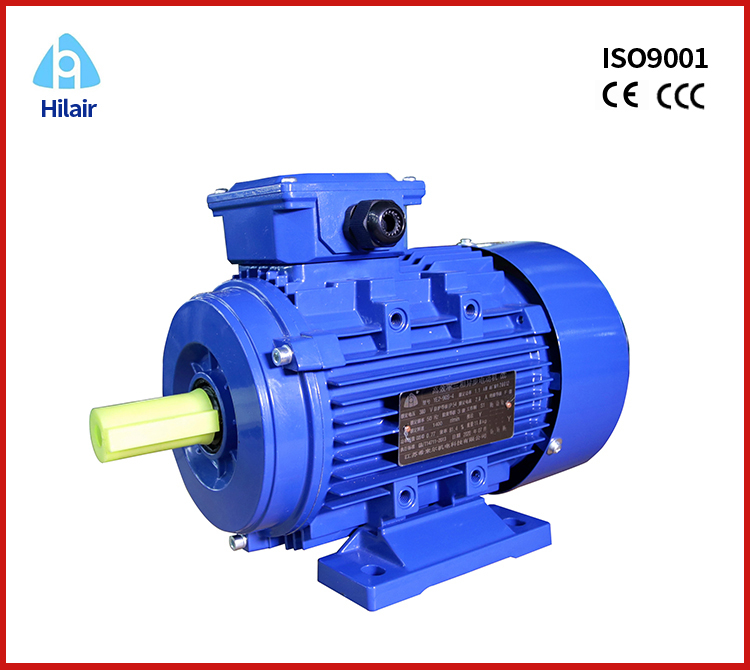

Three phase motor is the totally enclosed, fan-cooled induction motor for general purpose. It was the newest product in the 90S', its overall level has reached the same products abroad at the beginning of 90S' level. High quality magnet wire, vacuum varnish impregnation for superior tropic proof insulation, industrial type service factors, heavy duty ball bearings, high strength cast iron frame, balanced rotors. Water, dust and vermin resistant, quiet operation,corrosion resistant, reliable in country, city or factory environments, very low vibration, very low power consumption, superior life. This series motors have many sizes, among of them, the frames and end-shields of the frame size from H63 to H132 are made of cast iron or aluminum-alloy, and the frame of H160 or over are made of cast iron with sufficient mechanical strength, entirely look very beautiful.
| Motor Type | Power | Speed | InA | Efficiency | Power factor | TLR/ Trated | Tmax/Trated | Ilr/I rated | LwdB (A) | Weight | |
| KW | HP | R/ min | 380V | 100% | Cos | KG | |||||
| YE3-80M1-2 | 0.75 | 1.0 | 2830 | 1.8 | 77.4 | 0.83 | 2.3 | 2.3 | 6.8 | 62 | 16 |
| YE3-80M2-2 | 1.1 | 1.5 | 2830 | 2.5 | 79.6 | 0.83 | 2.3 | 2.3 | 7.1 | 62 | 17.5 |
| YE3-90S-2 | 1.5 | 2.0 | 2840 | 3.4 | 81.3 | 0.84 | 2.3 | 2.3 | 7.3 | 67 | 23.5 |
| YE3-90L-2 | 2.2 | 3.0 | 2840 | 4.7 | 83.2 | 0.85 | 2.3 | 2.3 | 7.6 | 67 | 28.5 |
| YE3-100L-2 | 3.0 | 4.0 | 2880 | 6.2 | 84.6 | 0.87 | 2.2 | 2.3 | 7.8 | 74 | 38 |
| YE3-112M-2 | 4.0 | 5.5 | 2880 | 8 | 85.8 | 0.88 | 2.2 | 2.3 | 8.1 | 77 | 49 |
| YE3-132S1-2 | 5.5 | 7.5 | 2900 | 10.9 | 87 | 0.88 | 2.2 | 2.3 | 8.2 | 79 | 63 |
| YE3-132S2-2 | 7.5 | 10 | 2900 | 14.5 | 88.1 | 0.89 | 2.2 | 2.3 | 7.8 | 79 | 70 |
| YE3-160M1-2 | 11 | 15 | 2900 | 21 | 89.4 | 0.89 | 2.2 | 2.3 | 7.9 | 81 | 121 |
| YE3-160M2-2 | 15 | 20 | 2930 | 28 | 90.3 | 0.89 | 2.2 | 2.3 | 7.9 | 81 | 132 |
| YE3-160L-2 | 18.5 | 25 | 2930 | 34 | 90.9 | 0.89 | 2.2 | 2.3 | 8.0 | 81 | 138 |
| YE3-180M-2 | 22 | 30 | 2940 | 41 | 91.3 | 0.89 | 2.2 | 2.3 | 8.1 | 83 | 191 |
| YE3-200L1-2 | 30 | 40 | 2950 | 55 | 92 | 0.89 | 2.0 | 2.3 | 7.5 | 84 | 240 |
| YE3-200L2-2 | 37 | 50 | 2950 | 67 | 92.5 | 0.89 | 2.0 | 2.3 | 7.5 | 84 | 257 |
| YE3-225M-2 | 45 | 60 | 2970 | 81 | 92.9 | 0.89 | 2.2 | 2.3 | 7.6 | 86 | 310 |
| YE3-250M-2 | 55 | 75 | 2970 | 100 | 93.2 | 0.89 | 2.2 | 2.3 | 7.6 | 89 | 386 |
| YE3-280S-2 | 75 | 100 | 2970 | 134 | 93.8 | 0.89 | 1.8 | 2.3 | 6.9 | 91 | 505 |
| YE3-280M-2 | 90 | 125 | 2970 | 160 | 94.1 | 0.89 | 1.8 | 2.3 | 6.9 | 91 | 555 |
| YE3-315S-2 | 110 | 150 | 2980 | 195 | 94.3 | 0.90 | 1.8 | 2.2 | 7.0 | 92 | 975 |
| YE3-315M-2 | 132 | 180 | 2980 | 232 | 94.6 | 0.90 | 1.8 | 2.2 | 7.0 | 92 | 1035 |
| YE3-315L1-2 | 160 | 215 | 2980 | 280 | 94.8 | 0.91 | 1.8 | 2.2 | 7.1 | 92 | 1130 |
| YE3-315L2-2 | 200 | 270 | 2980 | 350 | 95 | 0.91 | 1.8 | 2.2 | 7.1 | 92 | 1220 |
| YE3-80M1-4 | 0.55 | 0.75 | 1390 | 1.56 | 76.5 | 0.75 | 2.3 | 2.3 | 6.3 | 56 | 17 |
| YE3-80M2-4 | 0.75 | 1.0 | 1390 | 2.0 | 79.6 | 0.75 | 2.3 | 2.3 | 6.4 | 56 | 18.5 |
| YE3-90S-4 | 1.1 | 1.5 | 1400 | 2.8 | 81 | 0.75 | 2.3 | 2.3 | 6.6 | 59 | 24 |
| YE3-90L-4 | 1.5 | 2.0 | 1400 | 3.7 | 82.8 | 0.75 | 2.3 | 2.3 | 6.7 | 59 | 29.5 |
| YE3-100L1-4 | 2.2 | 3.0 | 1430 | 5.1 | 84.3 | 0.81 | 2.3 | 2.3 | 7.3 | 64 | 39.5 |
| YE3-100L2-4 | 3.0 | 4.0 | 1430 | 6.7 | 85.5 | 0.82 | 2.3 | 2.3 | 7.5 | 64 | 43.5 |
| YE3-112M-4 | 4.0 | 5.5 | 1440 | 8.7 | 86.6 | 0.82 | 2.3 | 2.3 | 7.5 | 65 | 52 |
| YE3-132S-4 | 5.5 | 7.5 | 1440 | 11.6 | 87.7 | 0.82 | 2.0 | 2.3 | 7.5 | 71 | 66 |
| YE3-132M-4 | 7.5 | 10 | 1440 | 15.5 | 88.7 | 0.83 | 2.0 | 2.3 | 7.4 | 71 | 78 |
| YE3-160M-4 | 11 | 15 | 1460 | 22.4 | 89.8 | 0.85 | 2.0 | 2.3 | 7.5 | 73 | 122 |
| YE3-160L-4 | 15 | 20 | 1460 | 30 | 90.6 | 0.86 | 2.0 | 2.3 | 7.5 | 73 | 139 |
| YE3-180M-4 | 18.5 | 25 | 1470 | 36.5 | 91.2 | 0.86 | 2.0 | 2.3 | 7.6 | 76 | 188 |
| YE3-180L-4 | 22 | 30 | 1470 | 43 | 91.6 | 0.86 | 2.1 | 2.3 | 7.7 | 76 | 193 |
| YE3-200L-4 | 30 | 40 | 1470 | 58 | 92.3 | 0.86 | 2.1 | 2.3 | 7.1 | 76 | 256 |
| YE3-225S-4 | 37 | 50 | 1475 | 70 | 92.7 | 0.86 | 2.1 | 2.3 | 7.3 | 78 | 308 |
| YE3-225M--4 | 45 | 60 | 1475 | 85 | 93.1 | 0.86 | 2.2 | 2.3 | 7.3 | 78 | 337 |
| YE3-250M-4 | 55 | 75 | 1480 | 104 | 93.5 | 0.86 | 2.2 | 2.3 | 7.3 | 79 | 410 |
| YE3-280S-4 | 75 | 100 | 1480 | 139 | 94 | 0.88 | 2.2 | 2.3 | 6.8 | 80 | 581 |
| YE3-280M-4 | 90 | 125 | 1480 | 166 | 94.2 | 0.88 | 2.2 | 2.3 | 6.9 | 80 | 643 |
| YE3-315S-4 | 110 | 150 | 1480 | 200 | 94.5 | 0.88 | 2.1 | 2.2 | 6.9 | 88 | 980 |
| YE3-315M-4 | 132 | 180 | 1480 | 240 | 94.7 | 0.88 | 2.1 | 2.2 | 6.9 | 88 | 1055 |
| YE3-315L1-4 | 160 | 215 | 1480 | 290 | 94.9 | 0.89 | 2.1 | 2.2 | 6.9 | 88 | 1155 |
| YE3-315L2-4 | 200 | 270 | 1480 | 360 | 95.1 | 0.89 | 2.1 | 2.2 | 6.9 | 88 | 1230 |
| YE3-80M1-6 | 0.37 | 0.5 | 910 | 1.3 | 71.4 | 0.7 | 2.0 | 2.1 | 4.7 | 57 | 18 |
| YE3-80M2-6 | 0.55 | 0.75 | 910 | 1.75 | 74.2 | 0.72 | 2.0 | 2.1 | 4.7 | 57 | 20.2 |
| YE3-90S-6 | 0.75 | 1.0 | 910 | 2.3 | 75.9 | 0.72 | 2.1 | 2.1 | 5.8 | 57 | 23 |
| YE3-90L-6 | 1.1 | 1.5 | 910 | 3.1 | 78.1 | 0.73 | 2.1 | 2.1 | 5.9 | 57 | 28.5 |
| YE3-100L-6 | 1.5 | 2.0 | 940 | 4.0 | 79.8 | 0.74 | 2.1 | 2.1 | 5.9 | 61 | 37.5 |
| YE3-112M-6 | 2.2 | 3.0 | 940 | 5.5 | 81.8 | 0.74 | 2.1 | 2.1 | 6.0 | 65 | 48 |
| YE3-132S-6 | 3.0 | 4.0 | 960 | 7.5 | 83.3 | 0.74 | 2.0 | 2.1 | 6.4 | 69 | 65 |
| YE3-132M1-6 | 4.0 | 5.5 | 960 | 9.5 | 84.6 | 0.74 | 2.0 | 2.1 | 6.6 | 69 | 73 |
| YE3-132M2-6 | 5.5 | 7.5 | 960 | 12.5 | 86 | 0.75 | 2.0 | 2.1 | 6.8 | 69 | 82 |
| YE3-160M-6 | 7.5 | 10 | 970 | 17 | 87.2 | 0.78 | 2.1 | 2.1 | 6.8 | 73 | 113 |
| YE3-160L-6 | 11 | 15 | 970 | 24 | 88.7 | 0.79 | 2.1 | 2.1 | 6.9 | 73 | 134 |
| YE3-180L-6 | 15 | 20 | 970 | 31 | 88.9 | 0.81 | 2.0 | 2.1 | 7.3 | 73 | 178 |
| YE3-200L1-6 | 18.5 | 25 | 980 | 38 | 90.4 | 0.81 | 2.1 | 2.1 | 7.2 | 73 | 226 |
| YE3-200L2-6 | 22 | 30 | 980 | 45 | 90.9 | 0.82 | 2.1 | 2.1 | 7.3 | 73 | 243 |
| YE3-225M-6 | 30 | 40 | 980 | 59 | 91.7 | 0.81 | 2.0 | 2.1 | 6.8 | 74 | 294 |
Can be applied in the machines where continuous duty is required, typical applications like pumps, fans, compressors, lifting equipment, production industry.
As one of China professional electric motor manufacturers, hilair motor focuses on providing high-quality 3 phase industrial motor and excellent service for 20+ years’ experience. We are a professional manufacturer and factory of 30,000 M2 which mainly produce 3 phase motor, Single Phase Motor, reducer motor, axial fan motors products. We provide you with small electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about 3 phase industrial motor, industrial 3 phase motors, 1.5 hp 3 phase induction motor,5hp 3 phase induction ac motor,asynchronous three phase motor, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the specifications, solutions and customization options of 3 phase motor, Single Phase Motor, reducer motor, axial fan motors... Welcome you to visit our factory!
