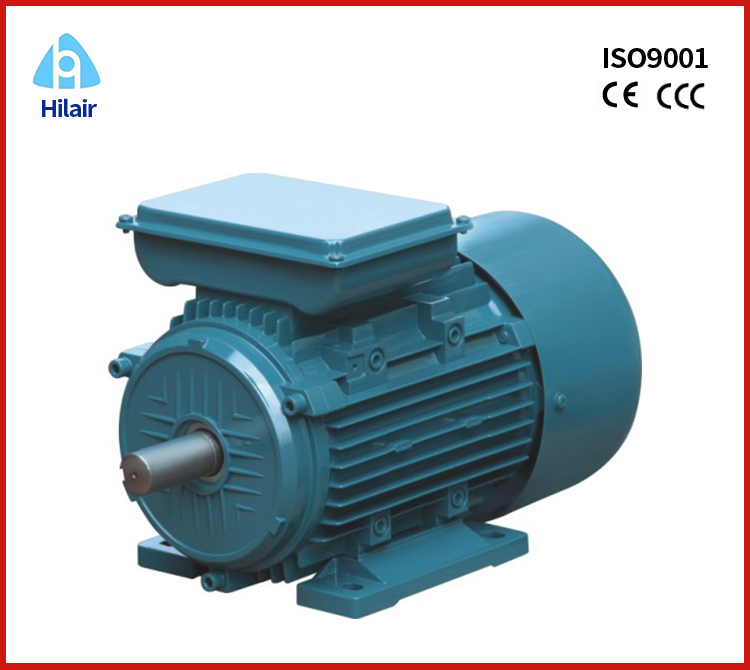

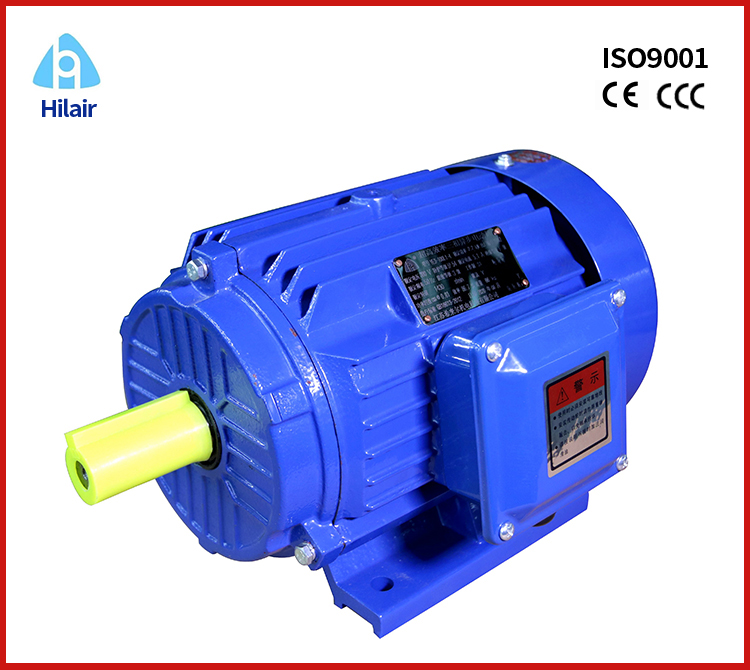

We're professional 3 phase induction motor 3hp manufacturers and suppliers in China, to buy or wholesale 3 hp ac motor from our factory. For quotation or if you have any questions, contact us now for customized induction motor 3hp and price.
The YE3 series (IP55) high efficiency three-phase asynchronous motor is a fully enclosed self-ventilated three-phase asynchronous motor with high energy efficiency limit.The installation size and power level accord with IEC standards. The terminal box is at the top outlet. This series of motors adopts cold-rolled silicon steel sheet as magnetically conductive material,the efficiency according with European standard .To achieve advanced technology in domestic and abroad . This motor will advertise greatly replacement products.The motor has a shaft extension, which can be designed two shaft extension according to customers ,The second shaft extension can also transmit the rated power, but it can only be driven by the coupling.It can also supply other power, voltage, frequency, wet heat (TH), protection class and other motors ,According to user needs.
| Motor Type | Power | Speed | InA | Efficiency | Power factor | TLR/ Trated | Tmax/Trated | Ilr/I rated | LwdB (A) | Weight | |
| KW | HP | R/ min | 380V | 100% | Cos | KG | |||||
| YE3-80M1-2 | 0.75 | 1.0 | 2830 | 1.8 | 77.4 | 0.83 | 2.3 | 2.3 | 6.8 | 62 | 16 |
| YE3-80M2-2 | 1.1 | 1.5 | 2830 | 2.5 | 79.6 | 0.83 | 2.3 | 2.3 | 7.1 | 62 | 17.5 |
| YE3-90S-2 | 1.5 | 2.0 | 2840 | 3.4 | 81.3 | 0.84 | 2.3 | 2.3 | 7.3 | 67 | 23.5 |
| YE3-90L-2 | 2.2 | 3.0 | 2840 | 4.7 | 83.2 | 0.85 | 2.3 | 2.3 | 7.6 | 67 | 28.5 |
| YE3-100L-2 | 3.0 | 4.0 | 2880 | 6.2 | 84.6 | 0.87 | 2.2 | 2.3 | 7.8 | 74 | 38 |
| YE3-112M-2 | 4.0 | 5.5 | 2880 | 8 | 85.8 | 0.88 | 2.2 | 2.3 | 8.1 | 77 | 49 |
| YE3-132S1-2 | 5.5 | 7.5 | 2900 | 10.9 | 87 | 0.88 | 2.2 | 2.3 | 8.2 | 79 | 63 |
| YE3-132S2-2 | 7.5 | 10 | 2900 | 14.5 | 88.1 | 0.89 | 2.2 | 2.3 | 7.8 | 79 | 70 |
| YE3-160M1-2 | 11 | 15 | 2900 | 21 | 89.4 | 0.89 | 2.2 | 2.3 | 7.9 | 81 | 121 |
| YE3-160M2-2 | 15 | 20 | 2930 | 28 | 90.3 | 0.89 | 2.2 | 2.3 | 7.9 | 81 | 132 |
| YE3-160L-2 | 18.5 | 25 | 2930 | 34 | 90.9 | 0.89 | 2.2 | 2.3 | 8.0 | 81 | 138 |
| YE3-180M-2 | 22 | 30 | 2940 | 41 | 91.3 | 0.89 | 2.2 | 2.3 | 8.1 | 83 | 191 |
| YE3-200L1-2 | 30 | 40 | 2950 | 55 | 92 | 0.89 | 2.0 | 2.3 | 7.5 | 84 | 240 |
| YE3-200L2-2 | 37 | 50 | 2950 | 67 | 92.5 | 0.89 | 2.0 | 2.3 | 7.5 | 84 | 257 |
| YE3-225M-2 | 45 | 60 | 2970 | 81 | 92.9 | 0.89 | 2.2 | 2.3 | 7.6 | 86 | 310 |
| YE3-250M-2 | 55 | 75 | 2970 | 100 | 93.2 | 0.89 | 2.2 | 2.3 | 7.6 | 89 | 386 |
| YE3-280S-2 | 75 | 100 | 2970 | 134 | 93.8 | 0.89 | 1.8 | 2.3 | 6.9 | 91 | 505 |
| YE3-280M-2 | 90 | 125 | 2970 | 160 | 94.1 | 0.89 | 1.8 | 2.3 | 6.9 | 91 | 555 |
| YE3-315S-2 | 110 | 150 | 2980 | 195 | 94.3 | 0.90 | 1.8 | 2.2 | 7.0 | 92 | 975 |
| YE3-315M-2 | 132 | 180 | 2980 | 232 | 94.6 | 0.90 | 1.8 | 2.2 | 7.0 | 92 | 1035 |
| YE3-315L1-2 | 160 | 215 | 2980 | 280 | 94.8 | 0.91 | 1.8 | 2.2 | 7.1 | 92 | 1130 |
| YE3-315L2-2 | 200 | 270 | 2980 | 350 | 95 | 0.91 | 1.8 | 2.2 | 7.1 | 92 | 1220 |
| YE3-80M1-4 | 0.55 | 0.75 | 1390 | 1.56 | 76.5 | 0.75 | 2.3 | 2.3 | 6.3 | 56 | 17 |
| YE3-80M2-4 | 0.75 | 1.0 | 1390 | 2.0 | 79.6 | 0.75 | 2.3 | 2.3 | 6.4 | 56 | 18.5 |
| YE3-90S-4 | 1.1 | 1.5 | 1400 | 2.8 | 81 | 0.75 | 2.3 | 2.3 | 6.6 | 59 | 24 |
| YE3-90L-4 | 1.5 | 2.0 | 1400 | 3.7 | 82.8 | 0.75 | 2.3 | 2.3 | 6.7 | 59 | 29.5 |
| YE3-100L1-4 | 2.2 | 3.0 | 1430 | 5.1 | 84.3 | 0.81 | 2.3 | 2.3 | 7.3 | 64 | 39.5 |
| YE3-100L2-4 | 3.0 | 4.0 | 1430 | 6.7 | 85.5 | 0.82 | 2.3 | 2.3 | 7.5 | 64 | 43.5 |
| YE3-112M-4 | 4.0 | 5.5 | 1440 | 8.7 | 86.6 | 0.82 | 2.3 | 2.3 | 7.5 | 65 | 52 |
| YE3-132S-4 | 5.5 | 7.5 | 1440 | 11.6 | 87.7 | 0.82 | 2.0 | 2.3 | 7.5 | 71 | 66 |
| YE3-132M-4 | 7.5 | 10 | 1440 | 15.5 | 88.7 | 0.83 | 2.0 | 2.3 | 7.4 | 71 | 78 |
| YE3-160M-4 | 11 | 15 | 1460 | 22.4 | 89.8 | 0.85 | 2.0 | 2.3 | 7.5 | 73 | 122 |
| YE3-160L-4 | 15 | 20 | 1460 | 30 | 90.6 | 0.86 | 2.0 | 2.3 | 7.5 | 73 | 139 |
| YE3-180M-4 | 18.5 | 25 | 1470 | 36.5 | 91.2 | 0.86 | 2.0 | 2.3 | 7.6 | 76 | 188 |
| YE3-180L-4 | 22 | 30 | 1470 | 43 | 91.6 | 0.86 | 2.1 | 2.3 | 7.7 | 76 | 193 |
| YE3-200L-4 | 30 | 40 | 1470 | 58 | 92.3 | 0.86 | 2.1 | 2.3 | 7.1 | 76 | 256 |
| YE3-225S-4 | 37 | 50 | 1475 | 70 | 92.7 | 0.86 | 2.1 | 2.3 | 7.3 | 78 | 308 |
| YE3-225M--4 | 45 | 60 | 1475 | 85 | 93.1 | 0.86 | 2.2 | 2.3 | 7.3 | 78 | 337 |
| YE3-250M-4 | 55 | 75 | 1480 | 104 | 93.5 | 0.86 | 2.2 | 2.3 | 7.3 | 79 | 410 |
| YE3-280S-4 | 75 | 100 | 1480 | 139 | 94 | 0.88 | 2.2 | 2.3 | 6.8 | 80 | 581 |
| YE3-280M-4 | 90 | 125 | 1480 | 166 | 94.2 | 0.88 | 2.2 | 2.3 | 6.9 | 80 | 643 |
| YE3-315S-4 | 110 | 150 | 1480 | 200 | 94.5 | 0.88 | 2.1 | 2.2 | 6.9 | 88 | 980 |
| YE3-315M-4 | 132 | 180 | 1480 | 240 | 94.7 | 0.88 | 2.1 | 2.2 | 6.9 | 88 | 1055 |
| YE3-315L1-4 | 160 | 215 | 1480 | 290 | 94.9 | 0.89 | 2.1 | 2.2 | 6.9 | 88 | 1155 |
| YE3-315L2-4 | 200 | 270 | 1480 | 360 | 95.1 | 0.89 | 2.1 | 2.2 | 6.9 | 88 | 1230 |
| YE3-80M1-6 | 0.37 | 0.5 | 910 | 1.3 | 71.4 | 0.7 | 2.0 | 2.1 | 4.7 | 57 | 18 |
| YE3-80M2-6 | 0.55 | 0.75 | 910 | 1.75 | 74.2 | 0.72 | 2.0 | 2.1 | 4.7 | 57 | 20.2 |
| YE3-90S-6 | 0.75 | 1.0 | 910 | 2.3 | 75.9 | 0.72 | 2.1 | 2.1 | 5.8 | 57 | 23 |
| YE3-90L-6 | 1.1 | 1.5 | 910 | 3.1 | 78.1 | 0.73 | 2.1 | 2.1 | 5.9 | 57 | 28.5 |
| YE3-100L-6 | 1.5 | 2.0 | 940 | 4.0 | 79.8 | 0.74 | 2.1 | 2.1 | 5.9 | 61 | 37.5 |
| YE3-112M-6 | 2.2 | 3.0 | 940 | 5.5 | 81.8 | 0.74 | 2.1 | 2.1 | 6.0 | 65 | 48 |
| YE3-132S-6 | 3.0 | 4.0 | 960 | 7.5 | 83.3 | 0.74 | 2.0 | 2.1 | 6.4 | 69 | 65 |
| YE3-132M1-6 | 4.0 | 5.5 | 960 | 9.5 | 84.6 | 0.74 | 2.0 | 2.1 | 6.6 | 69 | 73 |
| YE3-132M2-6 | 5.5 | 7.5 | 960 | 12.5 | 86 | 0.75 | 2.0 | 2.1 | 6.8 | 69 | 82 |
| YE3-160M-6 | 7.5 | 10 | 970 | 17 | 87.2 | 0.78 | 2.1 | 2.1 | 6.8 | 73 | 113 |
| YE3-160L-6 | 11 | 15 | 970 | 24 | 88.7 | 0.79 | 2.1 | 2.1 | 6.9 | 73 | 134 |
| YE3-180L-6 | 15 | 20 | 970 | 31 | 88.9 | 0.81 | 2.0 | 2.1 | 7.3 | 73 | 178 |
| YE3-200L1-6 | 18.5 | 25 | 980 | 38 | 90.4 | 0.81 | 2.1 | 2.1 | 7.2 | 73 | 226 |
| YE3-200L2-6 | 22 | 30 | 980 | 45 | 90.9 | 0.82 | 2.1 | 2.1 | 7.3 | 73 | 243 |
| YE3-225M-6 | 30 | 40 | 980 | 59 | 91.7 | 0.81 | 2.0 | 2.1 | 6.8 | 74 | 294 |
● Housing Material: Cast Iron/aluminum
● Terminal Box: Top/Side Mounted
● Protection Class: IP55
● Insulation Class: F/H
● Bearing: SKF/NSK/Chinese
● Frequency: 50/60HZ
● Ambient temperature: -15°C~40°C
● Altitude: not exceed 1000m
● Rated voltage: 380V(at buyer' s option)
● Rated frequency: 50HZ 60HZ(at buyer' s option)
● Cooling method: IC 411
● Duty: S1
As one of China professional electric motor manufacturers, hilair motor focuses on providing high-quality 3 phase induction motor 3hp and excellent service for 20+ years’ experience. We are a professional manufacturer and factory of 30,000 M2 which mainly produce 3 phase motor, Single Phase Motor, reducer motor, axial fan motors products. We provide you with small electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about 3 phase induction motor 3hp, 3 hp ac motor, induction motor 3hp, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the specifications, solutions and customization options of 3 phase motor, Single Phase Motor, reducer motor, axial fan motors... Welcome you to visit our factory!
