We're professional 6 pole 3 phase motor manufacturers and suppliers in China, to buy or wholesale 4 pole motor 3 phase from our factory. For quotation or if you have any questions, contact us now for customized 3 phase 2 pole motor and price.

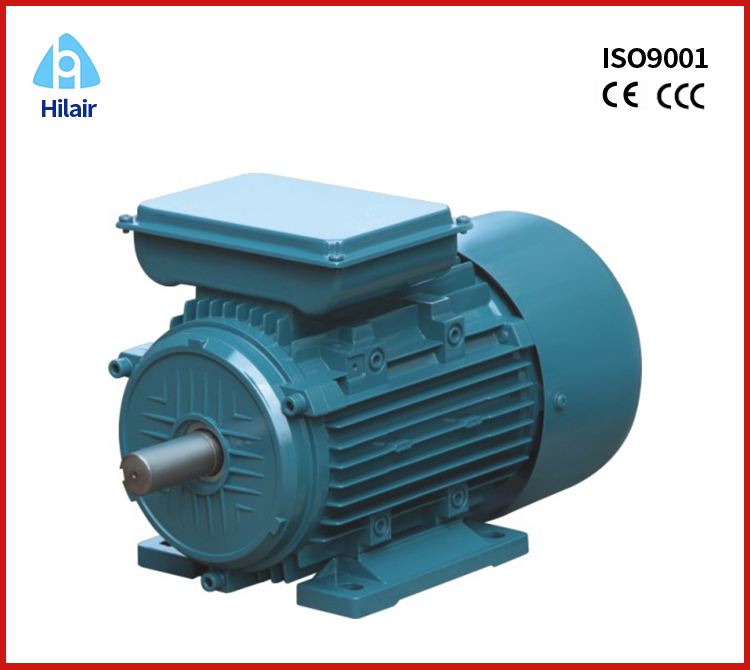

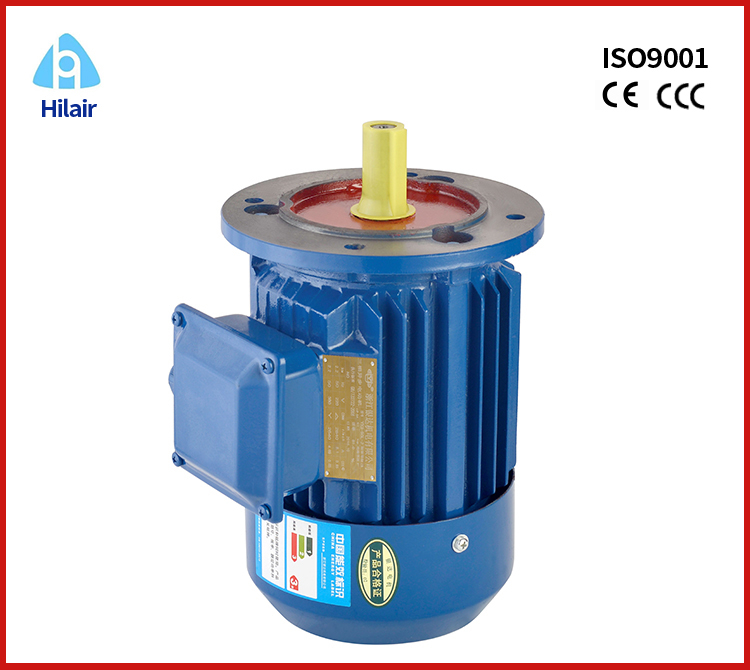

Multi speed motor is developed from Y series three-phase ac motor,the mounting size,insulation grade,production class, cooling way and working condition are same as Y series motors.An electric motor from material to finish motor, must pass 15 time check, and 100% testing, output power, voltage, electric current, non-load, 50% load, 75% load, 100% load and check the nameplate, packing. Finally shipping to our customer.100% copper winding and inserting stator, stator vacuum impregnation and drying,professional workman inspecting spare parts every processing,assembly product line, Electric motor will 100% test before painting, will 100% check again before packing.
| Motor Type | Power | Voltage | Current | Speed | Efficiency | Power factor | Ilr/I rated | TLR/ Trated | Noise |
| KW | V | A | r/min | % | Cos | Lwd(B) | |||
| YD80M1-4/2 | 0.45/0.55 | 380 | 1.4/1.5 | 1400/2750 | 66/65 | 0.74/0.85 | 6.5/7 | 1.5/1.7 | 79 |
| YD80M2-4/2 | 0.55/0.75 | 380 | 1.7/2.0 | 1400/2750 | 68/66 | 0.74/0.85 | 6.5/7 | 1.6/1.8 | 79 |
| YD90S-4/2 | 0.85/1.1 | 380 | 23/2.8 | 1410/2830 | 74/71 | 0.77/0.85 | 6.5/7 | 1.8/1.9 | 79 |
| YD90L-4/2 | 1.3/1.8 | 380 | 3.3/4.4 | 1410/2830 | 76/73 | 0.78/0.85 | 6.5/7 | 1.8/2.0 | 83 |
| YD100L1-4/2 | 2/2.4 | 380 | 4.8/5.6 | 1430/2850 | 78/76 | 0.81/0.86 | 6.5/7 | 1.7/1.9 | 87 |
| YD100L2-4/2 | 2.4/3 | 380 | 5.6/6.7 | 1430/2850 | 79/77 | 0.83/0.89 | 6.5/7 | 1.6/1.7 | 87 |
| YD-112M-4-2 | 3.3/4 | 380 | 7.4/8.6 | 1445/2890 | 82/89 | 0.83/0.89 | 6.5/7 | 1.9/2.0 | 87 |
| YD-132S-4/2 | 4.5/5.5 | 380 | 9.8/11.9 | 1450/2855 | 83/79 | 0.84/0.89 | 6.5/7 | 1.7/1.8 | 91 |
| YD-132M-4/2 | 6.5/8 | 380 | 13.8/17.1 | 1450/2880 | 84/80 | 0.85/0.89 | 6.5/7 | 1.7/1.8 | 91 |
| YD160M-4/2 | 9/11 | 380 | 18.5/22.9 | 1460/2920 | 87/82 | 0.85/0.89 | 6.5/7 | 1.6/1.8 | 95 |
| YD160L-4/2 | 11/14 | 380 | 22.3/28.8 | 1455/2920 | 87/82 | 0.86/0.90 | 6.5/7 | 1.7/1.9 | 95 |
| YD180M-4/2 | 15/18.5 | 380 | 29.4/36.7 | 1470/2945 | 89/85 | 0.87/0.9 | 6.5/7 | 1.8/1.9 | 95 |
| YD180L-4/2 | 18.5/22 | 380 | 35.9/42.7 | 1465/2945 | 89/86 | 0.88/0.91 | 6.5/7 | 1.6/1.8 | 95 |
| YD200L-4/2 | 26/30 | 380 | 49.9/58.3 | 1470/2945 | 89/85 | 0.89/0.92 | 6.5/7 | 1.4/1.6 | 98 |
| YD225S-4/2 | 32/37 | 380 | 60.7/71.1 | 1480/2960 | 90/86 | 0.89/0.92 | 6.5/7 | 1.4/1.6 | 98 |
| YD225M-4/2 | 37/45 | 380 | 69.4/86.4 | 1480/2960 | 91/86 | 0.89/0.92 | 6.5/7 | 1.6/1.6 | 100 |
| YD250M-4/2 | 45/52 | 380 | 84.4/98.7 | 1480/2960 | 91/87 | 0.89/0.92 | 6.5/7 | 1.6/1.6 | 100 |
| YD280S-4/2 | 60/72 | 380 | 111.3/135.1 | 1485/2970 | 91/88 | 0.9/0.92 | 6.5/7 | 1.4/1.5 | 102 |
| YD280M-4/2 | 72/82 | 380 | 133.6/152.2 | 1485/2970 | 91/88 | 0.9/0.93 | 6.5/7 | 1.4/1.5 | 102 |
| YD90S-6/4 | 0.65/0.85 | 380 | 23/2.3 | 920/1410 | 64/70 | 0.68/0.79 | 6/6.5 | 1.6/1.4 | 75 |
| YD90L-6/4 | 0.85/1.1 | 380 | 2.8/3.0 | 930/1410 | 66/71 | 0.7/0.79 | 6/6.5 | 1.6/1.5 | 75 |
| YD100L1-6/4 | 1.3/1.8 | 380 | 3.8/4.4 | 940/1440 | 74/77 | 0.7/0.8 | 6/6.5 | 1.7/1.4 | 78 |
| YD100L2-6/4 | 1.5/2.2 | 380 | 43/5.4 | 940/1440 | 75/77 | 0.7/0.8 | 6/6.5 | 1.6/1.4 | 78 |
| YD112M-6/4 | 2.2/2.8 | 380 | 5.7/6.7 | 950/1430 | 78/77 | 0.75/0.82 | 6/6.5 | 1.8/1.5 | 82 |
| YD132S-6/4 | 3/4 | 380 | 7.7/9.5 | 970/1440 | 79/78 | 0.75/0.82 | 6/6.5 | 1.8/1.7 | 82 |
| YD132M-6/4 | 4/4.5 | 380 | 9.8/12.3 | 970/970/1450 | 82/80 | 0.76/0.85 | 6/6.5 | 1.6/1.4 | 82 |
| YD160M-6/4 | 6.5/8 | 380 | 15.1/17.6 | 970/1455 | 84/82 | 0.78/0.84 | 6/6.5 | 1.5/1.5 | 86 |
| YD160L-6/4 | 9/11 | 380 | 20.6/23.7 | 970/1460 | 85/83 | 0.78/0.85 | 6/6.5 | 1.6/1.7 | 86 |
| YD180M-6/4 | 11/14 | 380 | 25.9/29.8 | 970/1465 | 85/84 | 0.76/0.85 | 6/6.5 | 1.6/1.7 | 90 |
| YD180L-6/4 | 13/16 | 380 | 29.4/33.6 | 970/1465 | 86/85 | 0.78/0.85 | 6/6.5 | 1.7/1.7 | 90 |
| YD200L-6/4 | 18.5/22 | 380 | 41.4/44.9 | 975/1460 | 87/86.5 | 0.78/0.86 | 6.5/7 | 1.6/1.5 | 90 |
| YD225S-6/4 | 22/28 | 380 | 44.2/57.2 | 980/1470 | 88/86.5 | 0.86/0.87 | 6.5/7 | 1.8/1.8 | 92 |
| YD225M-6/4 | 26/32 | 380 | 53.4/65.4 | 980/1470 | 88/85.5 | 0.86/0.9 | 6.5/7 | 1.5/1.3 | 92 |
| YD250M-6/4 | 32/42 | 380 | 62.1/81.1 | 980/1470 | 90/86.5 | 0.87/0.91 | 6.5/7 | 1.5/1.3 | 98 |
| YD280S-6/4 | 42/55 | 380 | 81.5/106.7 | 985/1480 | 90/87 | 0.87/0.9 | 6.5/7 | 1.5/1.3 | 98 |
| YD280M-6/4 | 55/67 | 380 | 106.7/131.5 | 985/1480 | 90/87 | 0.87/0.89 | 6.5/7 | 1.6/1.3 | 98 |
| YD90L-8/4 | 0.45/0.75 | 380 | 1.9/1.8 | 670/1400 | 58/72 | 0.63/0.87 | 5.5/6.5 | 1.6/1.4 | 75 |
| YD100L-8/4 | 0.85/1.5 | 380 | 3.1/3.5 | 750/1514 | 67/74 | 0.63/0.88 | 5.5/6.5 | 1.6/1.4 | 78 |
| YD112M-8/4 | 1.5/2.4 | 380 | 5.0/5.3 | 710/1430 | 72/78 | 0.63/0.88 | 5.5/6.5 | 1.7/1.7 | 82 |
| YD132S-8/4 | 2.2/3.3 | 380 | 7.0/7.1 | 720/1445 | 75/80 | 0.64/0.88 | 5.5/6.5 | 1.5/1.7 | 82 |
| YD132M-8/4 | 3/4.5 | 380 | 9.0/9.4 | 720/1450 | 78/82 | 0.65/0.89 | 5.5/6.5 | 1.5/1.6 | 82 |
| YD160M-8/4 | 5/7.5 | 380 | 13.9/15.2 | 730/1450 | 83/84 | 0.66/0.89 | 5.5/6.5 | 1.5/1.6 | 86 |
| YD160L-8/4 | 7/11 | 380 | 19/21.8 | 730/1450 | 85/86 | 0.66/0.89 | 5.5/6.5 | 1.5/1.6 | 86 |
| YD180L-8/4 | 11/17 | 380 | 26.7/32.3 | 730/1470 | 87/88 | 0.72/0.91 | 6/7 | 1.5/1.6 | 90 |
| YD200L1-8/4 | 14/22 | 380 | 33/41.3 | 735/1470 | 87/88 | 0.74/0.92 | 6/7 | 1.8/1.7 | 90 |
| YD200L2-8/4 | 17/26 | 380 | 40.1/48.8 | 735/1470 | 87/88 | 0.74/0.92 | 6/7 | 1.5/1.7 | 92 |
| YD225M-8/4 | 23/34 | 380 | 53.2/66.7 | 735/1470 | 89/88 | 0.77/0.88 | 6/7 | 1.5/1.5 | 92 |
| YD250M-8/4 | 30/42 | 380 | 64.9/78.8 | 740/1480 | 90/89 | 0.78/0.91 | 6/7 | 1.6/1.7 | 94 |
| YD280S-8/4 | 40/55 | 380 | 83.5/102 | 740/1485 | 91/90 | 0.8/0.91 | 6/7 | 1.6/1.7 | 98 |
| YD280M-8/4 | 47/67 | 380 | 96.9/122.9 | 740/1485 | 91/90 | 0.81/0.92 | 6/7 | 1.6/1.7 | 98 |
| YD90S-8/6 | 0.35/0.45 | 380 | 1.6/1.4 | 675/930 | 56/70 | 0.6/0.72 | 5/6 | 1.8/2 | 73 |
| YD90L-8/6 | 0.45/0.65 | 380 | 1.9/1.9 | 680/920 | 59/71 | 0.6/0.73 | 5/6 | 1.7/1.8 | 73 |
| YD100L-8/6 | 0.75/1.1 | 380 | 2.9/3.1 | 710/945 | 65/75 | 0.6/0.73 | 5/6 | 1.8/1.9 | 73 |
| YD112M-8/6 | 1.3/1.8 | 380 | 4.5/4.8 | 710/945 | 72/78 | 0.61/0.73 | 5/6 | 1.7/1.9 | 75 |
| YD132S-8/6 | 1.8/2.4 | 380 | 5.8/6.2 | 725/970 | 76/80 | 0.62/0.73 | 5/6 | 1.6/1.9 | 79 |
| YD132M-8/6 | 2.6/3.7 | 380 | 8.2/9.4 | 725/970 | 78/82 | 0.62/0.73 | 5/6 | 1.9/1.9 | 79 |
| YD160M-8/6 | 4.5/6 | 380 | 13.3/14.7 | 730/975 | 83/85 | 0.62/0.73 | 5/6 | 1.6/1.9 | 83 |
| YD160L-8/6 | 5.5/7.5 | 380 | 17.5/19.4 | 730/980 | 84/86 | 0.62/0.73 | 5/6 | 1.6/1.9 | 83 |
| YD180M-8/6 | 7.5/10 | 380 | 21.9/24.2 | 730/980 | 84/86 | 0.62/0.73 | 5/6 | 1.9/1.9 | 83 |
| YD180L-8/6 | 9/12 | 380 | 24.7/28.3 | 730/980 | 85/86 | 0.65/0.75 | 5/6 | 1.8/1.8 | 86 |
| YD200L1-8/6 | 12/17 | 380 | 32.6/39.1 | 735/980 | 86/87 | 0.65/0.76 | 5/6 | 1.8/2 | 88 |
| YD200L2-8/6 | 15/20 | 380 | 40.3/45.4 | 735/980 | 87/88 | 0.65/0.76 | 5/6 | 1.8/2 | 88 |
| YD160M-12/6 | 2.6/5 | 380 | 11.6/11.9 | 480/975 | 74/84 | 0.46/0.76 | 4/6 | 1.2/1.4 | 79 |
| YD160L-12/6 | 3.7/7 | 380 | 16.1/15.8 | 480/975 | 76/85 | 0.46/0.79 | 4/6 | 1.2/1.4 | 83 |
| YD180L-12/6 | 5.5/10 | 380 | 19.6/20.5 | 485/975 | 79/86 | 0.54/0.86 | 4/6 | 1.3/1.3 | 83 |
| YD200L1-12/6 | 7.5/13 | 380 | 24.5/26.4 | 485/975 | 83/87 | 0.56/0.86 | 4/6 | 1.5/1.5 | 86 |
| YD200L2-12/6 | 9.5/11 | 380 | 28.9/30.1 | 485/975 | 83/87 | 0.57/0.87 | 4/6 | 1.5/1.5 | 86 |
| YD225M-12/6 | 12.5/21 | 380 | 35.2/39.7 | 490/980 | 85/88 | 0.61/0.87 | 4/6 | 1.5/1.5 | 86 |
| YD250M-12/6 | 15/24 | 380 | 42.1/47.1 | 490/985 | 86/89 | 0.63/0.87 | 4/6 | 1.5/1.5 | 89 |
| YD280S-12/6 | 20/30 | 380 | 54.8/58.9 | 490/990 | 88/89 | 0.63/0.87 | 4/6 | 1.5/1.5 | 89 |
| YD280M-12/6 | 24/37 | 380 | 63.7/72.6 | 490/990 | 88/89 | 0.65/0.87 | 4/6 | 1.5/1.5 | 89 |
● Protection Class: IP55
● Insulation Grade: F
● Cooling Way: IC411
● Duty Type: S1
General place and machine without special requirements, for example: machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, food machines, agitator, air compressor etc. We also can supply aluminum housing type for frame size under the standard of IEC.
As one of China professional electric motor manufacturers, hilair motor focuses on providing high-quality 6 pole 3 phase motor and excellent service for 20+ years’ experience. We are a professional manufacturer and factory of 30,000 M2 which mainly produce 3 phase motor, Single Phase Motor, reducer motor, axial fan motors products. We provide you with small electric motors wholesale, customization, design, packaging, industry solutions and OEM & ODM service.
If you have any questions about 6 pole 3 phase motor, 3 phase 2 pole motor, 2960 rpm 3 phase motor,990 rpm 3 phase motor,4 pole motor 3 phase, please don't hesitate to contact us at any time. We will provide detailed information and technical support about the specifications, solutions and customization options of 3 phase motor, Single Phase Motor, reducer motor, axial fan motors... Welcome you to visit our factory!
