Capacitor Start vs. Capacitor Run Motors: Choosing the Right Single-Phase Power

Single-phase AC motors face a startup challenge: they can't self-start like three-phase motors. Capacitor start and capacitor run motors solve this with clever circuitry-but their designs serve distinct purposes. Here's how to pick the optimal one for your application.

What Are Capacitor Start & Capacitor Run Motors?

Both motor types use capacitors to create a phase shift for starting torque, but differ fundamentally:

Capacitor Start Motor:

 - Uses a start capacitor(high µF) + centrifugal switch.

 - Action:Capacitor engages briefly at startup for high torque, then disconnects via switch.

 - Rotor:Standard squirrel cage.

Capacitor Run Motor:

 - Uses a run capacitor(lower µF) permanently connected.

 - Action:Provides continuous phase shift for smoother operation.

 - No centrifugal switch– simpler design.

Key Insight: Start motors = high initial torque; Run motors = quiet, consistent performance.

How They Work: Capacitor Engineering Explained

Capacitor Start Motor Operation

1. Start Phase:

  - Start capacitor creates 90° phase shift → boosts magnetic field imbalance.

  - Delivers 200-300% rated torquefor 0.5–3 seconds.

2. Run Phase:

  - Centrifugal switch opens at ~75% speed → capacitor disconnects.

  - Motor runs on main winding alone.

Capacitor Run Motor Operation

1. Continuous Support:

  - Run capacitor stays connected, optimizing magnetic field alignment.

2. Torque & Efficiency:

  - Maintains 20-30% higher running torquevs. split-phase motors.

  - Reduces vibration/noise by balancing windings.

Critical Applications

Use Capacitor Start Motors When You Need:

- High Breakaway Torque:

 - Compressors (refrigeration/AC)

 - Conveyors under heavy initial load

 - Power tools (e.g., table saws)

Choose Capacitor Run Motors For:

- Quiet Continuous Duty:

 - HVAC fans/blowers

 - Pumps (water circulation)

 - Medical equipment (ventilators, centrifuges)

- High Efficiency Needs:

 - Energy-certified appliances (EU Ecodesign)

Selection Guide: 4 Key Factors

1. Load Profile:

  - High inertia? → Capacitor start.

  - Steady load? → Capacitor run.

2. Duty Cycle:

  - Frequent starts/stops? → Start motor handles surges.

3. Noise Constraints:

  - Hospitals/offices? → Capacitor run's silent operation.

4. Capacitor Lifespan:

  - Run motor capacitors last 5–10 years (quality-dependent).

Conclusion

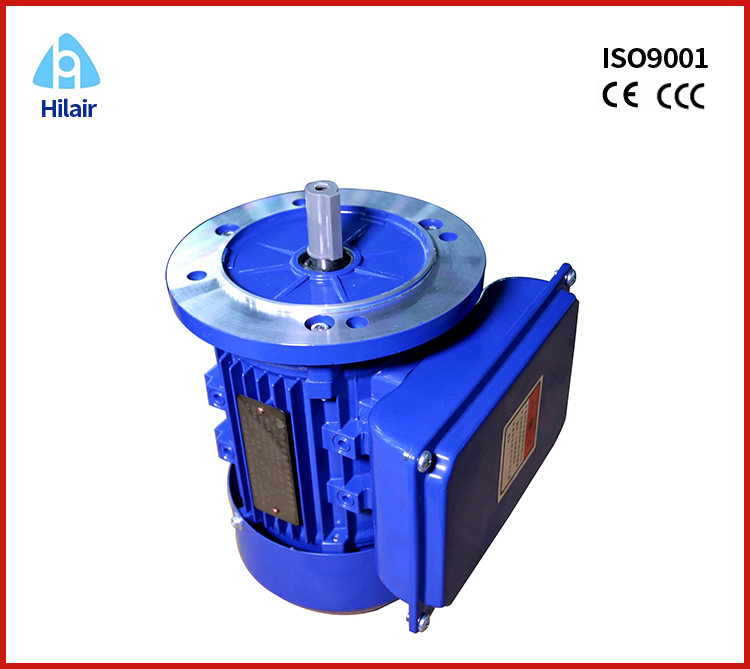

Hilair capacitor start motors excel in high-torque startup scenarios, while capacitor run motors deliver efficiency and silence for continuous operations. Matching the motor type to your load profile ensures longevity and peak performance-whether powering an industrial compressor or a hospital ventilator.

References

1. Chapman, S.J. (2023). Electric Machinery Fundamentals(7th ed.). McGraw Hill. (Capacitor motor theory, Ch. 9).

2. IEC 60034-30-1:2014. Efficiency classes for single-phase motors. International Electrotechnical Commission.

3. Patel, R. (2022). "Capacitor Failure Modes in Single-Phase Motors." IEEE Transactions on Industry Applications, 58(3).

4. ASHRAE Handbook (2021). HVAC Systems and Equipment. Ch. 45: Motors and Drives.

5. European Commission (2023). Ecodesign Regulation (EU) 2019/1781 for Single-Phase Motors.
